Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 122

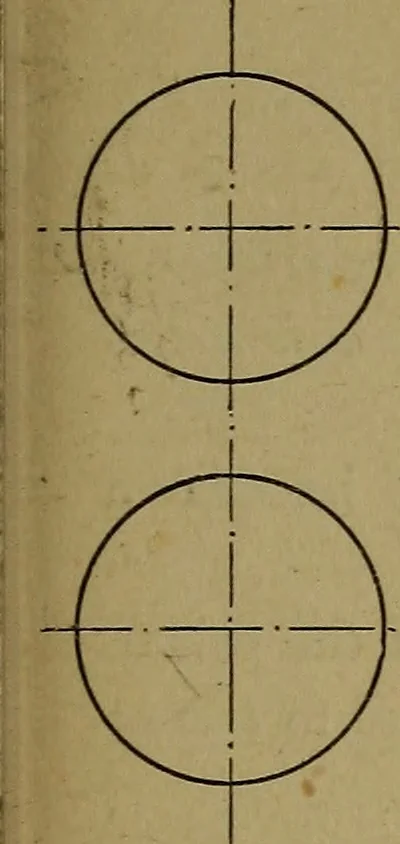

and left side views, and develop7nent of a horizontalcylinder, whose axis is parallel to the front plane. The front view is a rectangle and represents the circles by vertical lines;the distance between these verticals is equal to the length of the cylinder.The side view is a circle, and should be… … F.g. 39.
Mechanical drawing
