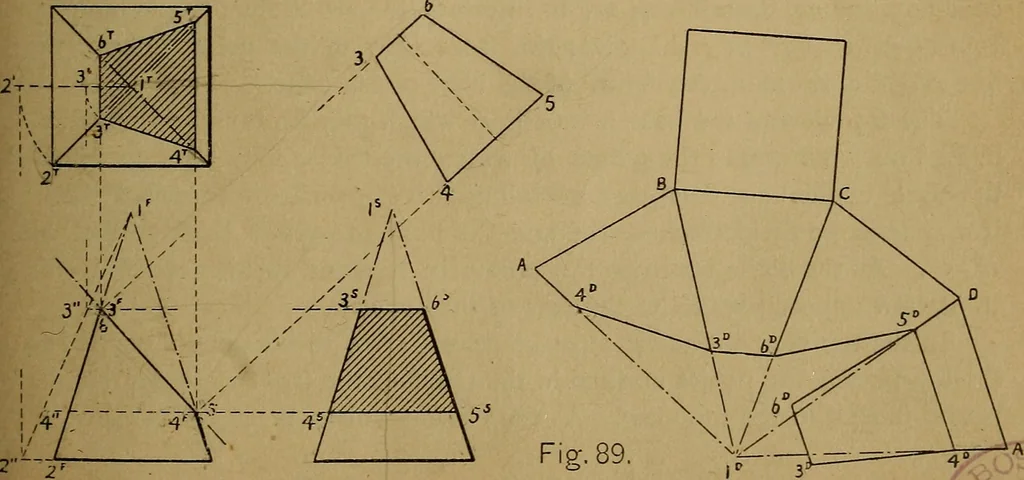

2 … I30 MECHANICAL DRAWING. PLATE X. Fig. 90. (y^) Front and top views of a vertical circular card, par-allel to the front plane. (B) The same views of the same card when perpendicular to the toppla7te and at a7i angle of 4S° with the front plane. The views of the first position are necessary to obtain…
