Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 154

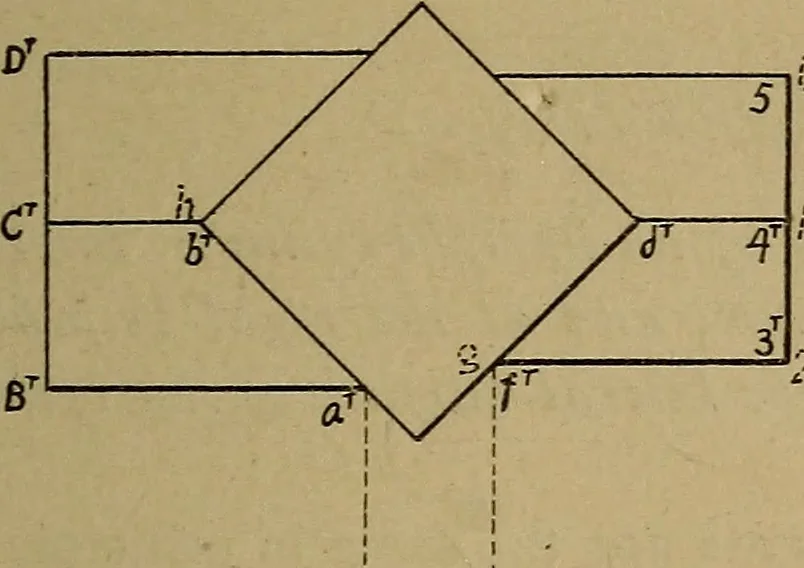

face of the square prism through thepoints of the intersections. Place these lines in the development by settingoff from AD and C^ the distances, seen in the top view, of the lines fromA T and C^; thus to obtain aD and eD draw a parallel to AD at the distanceA^a^ from it, and tken set off in this…
Mechanical drawing
