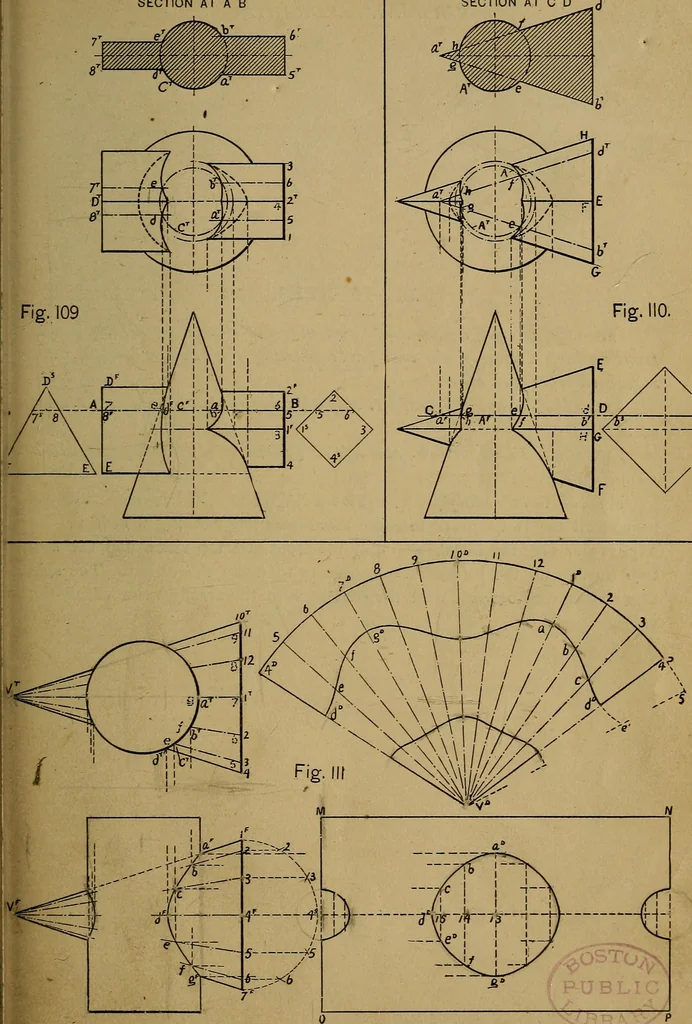

ments. *■ The principles involved have been.previously explained. To develop the cone, find the distances of points b, c, d, e, and/ fromthe vertex V, by measuring upon the contour elements, as explained underFig. 98. Obtain the line of intersection in the development of the cylinder bymeasuring,… … SECTION AT C D 154 MECHANICAL DRAWING. PLATE XVIII. Fig. 112. Front, top, and left side views of a loose joint hinge; alsofront and top views of the two paints forming the hinge, when they areseparated from each other. Fig. 113. Fro7i{, top, and left side views of a sash lift; also a sectiotton AB.…
