Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 25

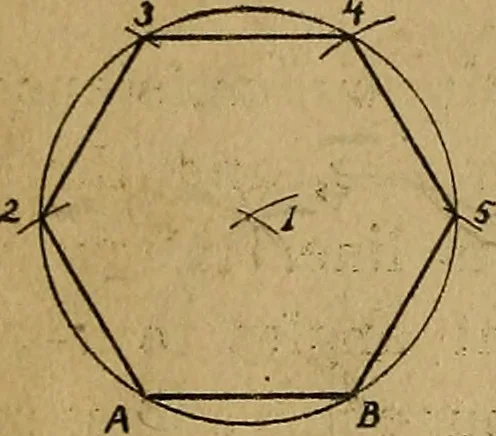

i6 MECHANICAL DRA WING. Problem 17. — To construct a regular hexagonupon a given base AB. With A and B as centres and AB as radius,describe arcs which intersect at i. With i ascentre and same radius, describe a circle, and inits circumference place points 2, j, 4, and j, whichare equidistant and…
Mechanical drawing
Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
