Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 27

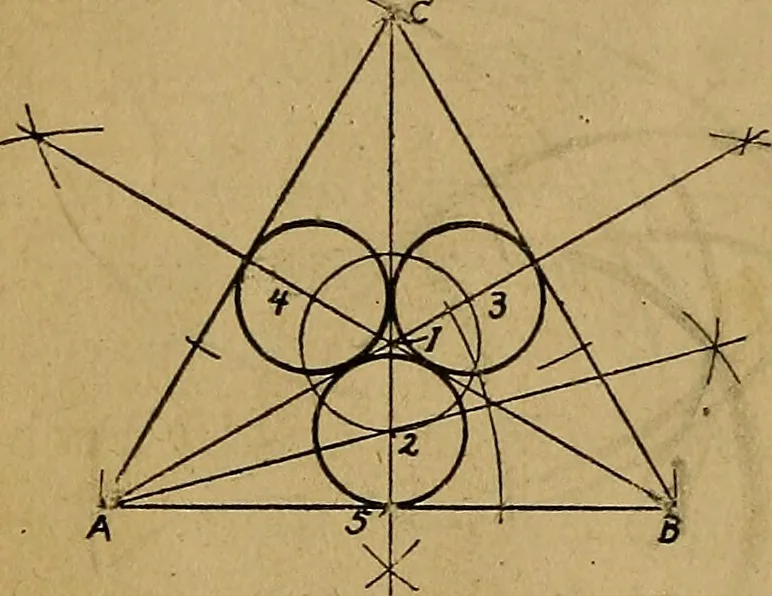

iS- MECHANICAL DRAWING. is the centre of the required arc, and lines from 5 to 7- and from5 to J give 6 and 7, the points of contact of the arc and circles Aand B. Problem 25. … To draw, withiji a given equilateral triangle ABC,three equal circles, each tangent to twoothers and to one side of the triangle. Bisect the angles of the triangle andobtain i. Bisect the angle i AB andobtain 2, the centre of one circle. WithI as centre and radius 1-2 draw an arcto obtain centres j…
