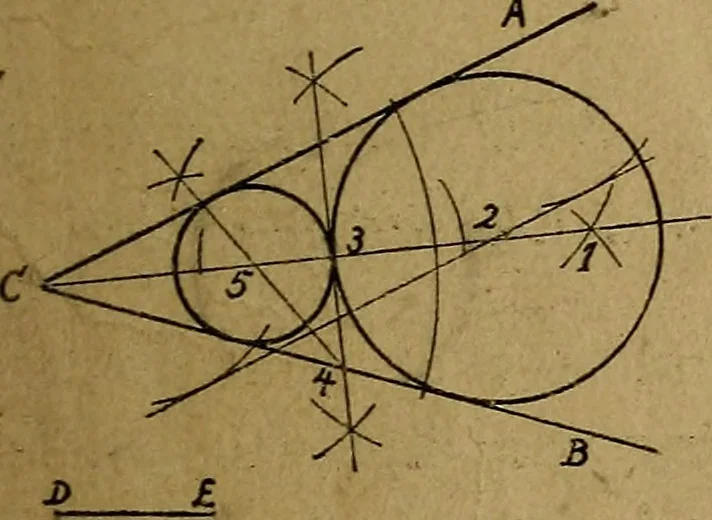

y C 7. Drawparallel to AC, and distant from it by theradius of the given circle, a line which, in-tersecting C I at 2, gives the x:entre ofthe first circle, which intersects C i in j-At 3 erect a perpendicular to C i andobtain 4, and bisect the angle 3-4-C,obtaining 5, the centre of the second… … 22 MECHANICAL DRA WING.
