Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 31

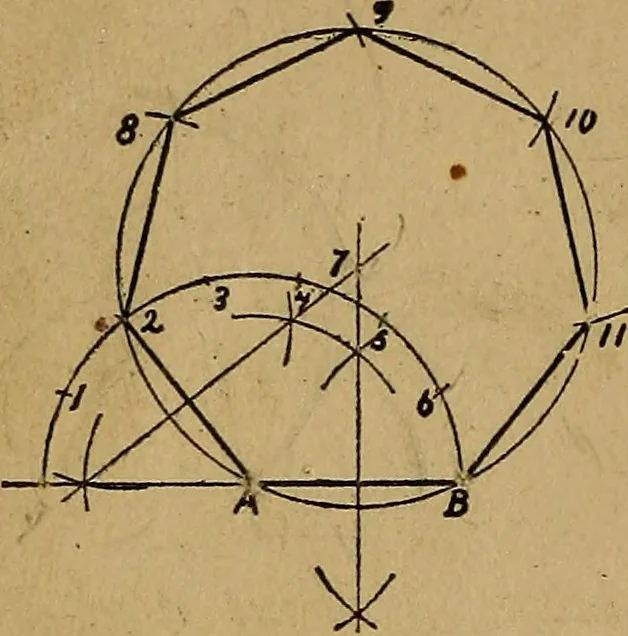

22 MECHANICAL DRA WING. … Extend BA^ and with^ as centre andAB as radius describe a semi-circle. Dividethe semi-circle into as many equal parts asthere are sides in the required polygon, anddraw from A to the second point, a secondside of the polygon. Bisect A 2 and AB;the bisectors meet at 7, the centre of therequired…
