Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 46

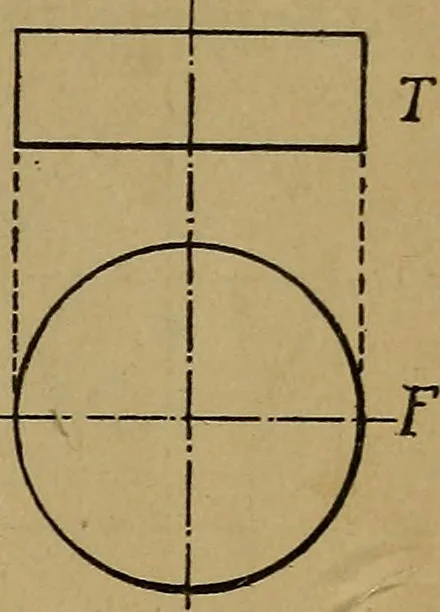

WORKING DRAWINGS. 37 … Fig, 9. any position, but it is better to have it placed inthe position in which it is intended to be used.Suppose the circles to be. vertical and the objectto be seen from the front, so that the front surfaceappears of its real shape. The circle F^ Fig. 9,will then be the front view of the object.…
Mechanical drawing
Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
