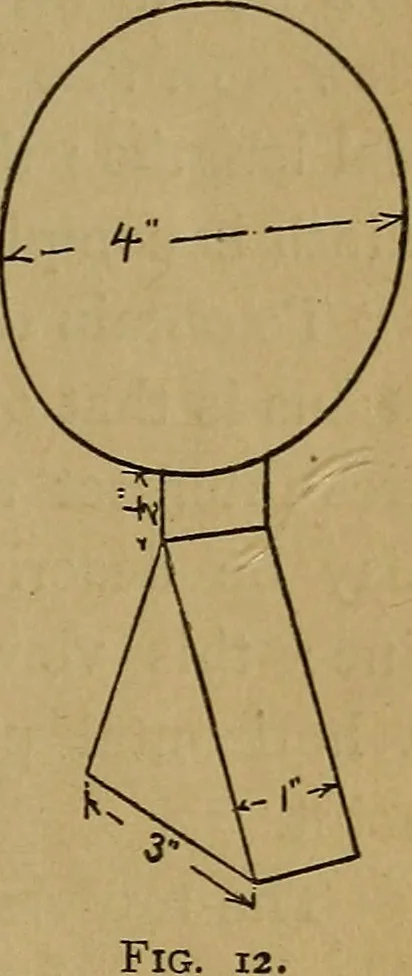

this position the two visible vertical faces will appear ofequal widths, the vertical surface originally at the front of the objectwill appear a vertical line at the left of the object, and the verticalsurface originally at the back, a vertical line at the right of the object.The distance between… … level as the front view, its width being the distance 1-2 of the topview. See i?.-5., Fig. 11. 39. Views of a Plinth and Disc. — Fig. 12represents an equilateral triangular plinth support-ing, by means of two wires,- a vertical circular disc,which appears a circle in the front view. To represent…
