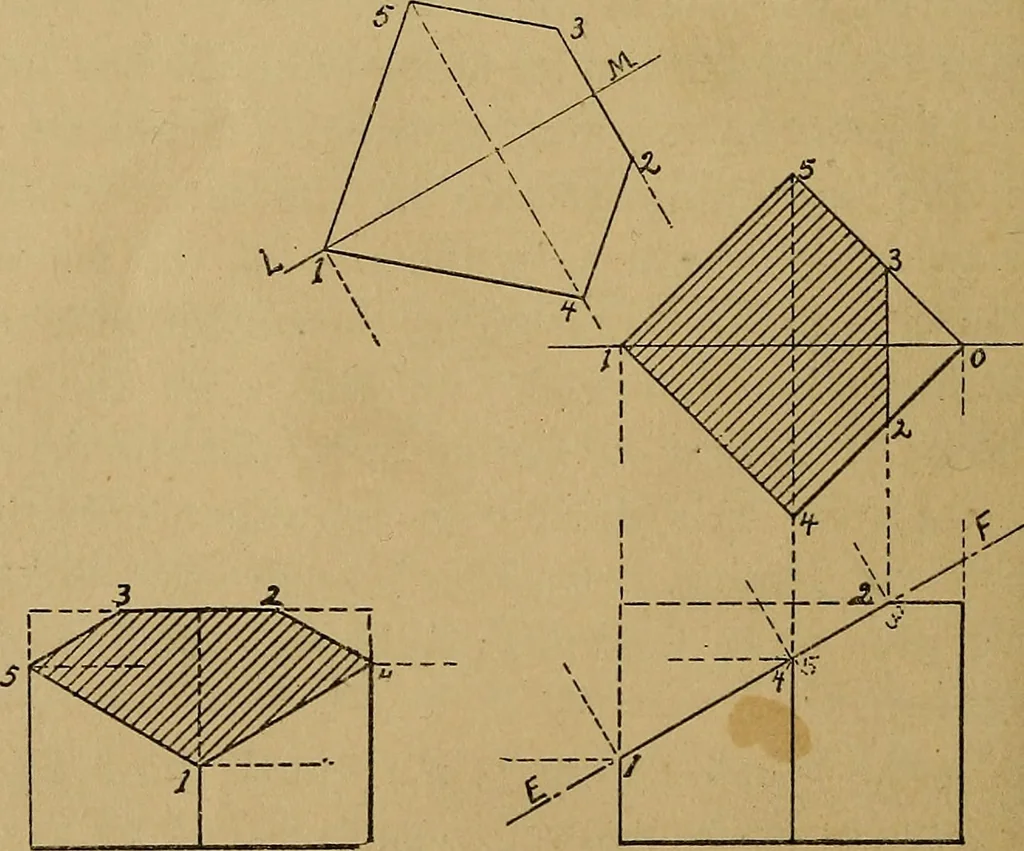

the section given by any cuttingplane, the plane must first be represented in the view in which itappears a line, for only in this view are the points in which it inter-sects the edges, or elements, of the object seen. The points ofintersection, havingbeen determined inthis view, are… … SECTIONS. 91 The top view of the cube is a square whose sides are at 45°;the front and side views are equal rectangles. Line EF in the frontview represents the cutting plane. We will suppose the part of thecube above this plane to be removed, and will represent it by dottedlines. In the top view,…
