Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 68

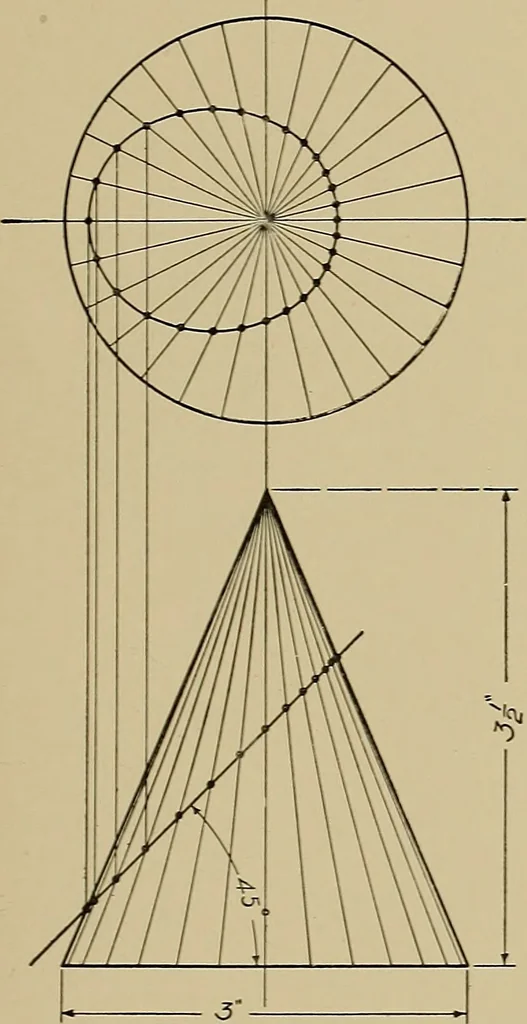

ve a true ellipse. The top view of the parabola is projected in the same manneras the ellipse. With the top and side views complete, it is quite asimple matter to develop the front view point by point, as shownin the illustration. By this method of projection the student can easily lay out…
Mechanical drawing
