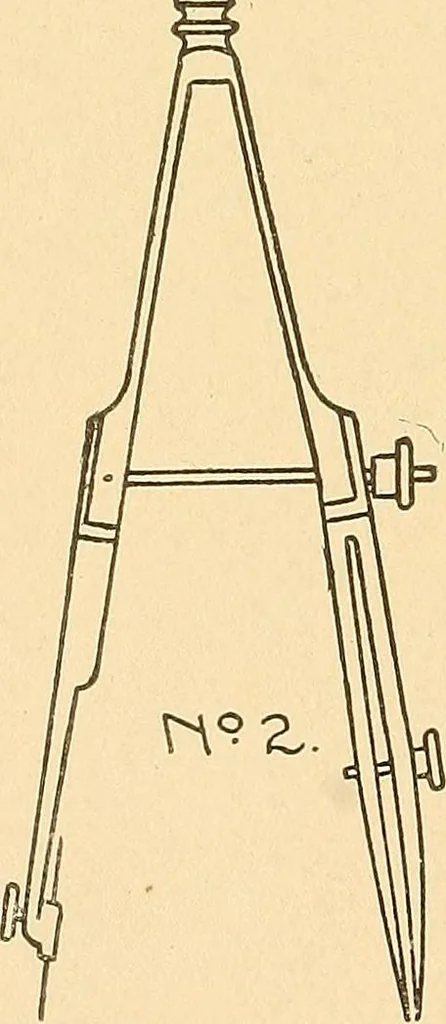

nn … o Fka.54. square. No. 2 is called a bow pen, andis used in making small and mediumsized circles. No. 3 is an attachment usedin inking large circles. As shown, it ismade with a joint and is designed to slipinto the large compasses shown in ourfirst chapter, taking the place of the pejcil attachment.…
