Mechanical drawing for plumbers; a concise, comprehensive and practical treatise on the subject of mechanical drawing (1910)
Starbuck, R. M. (Robert Macy), 1844-1927 · New York, The Norman W. Henley publishing co. · leaf 68

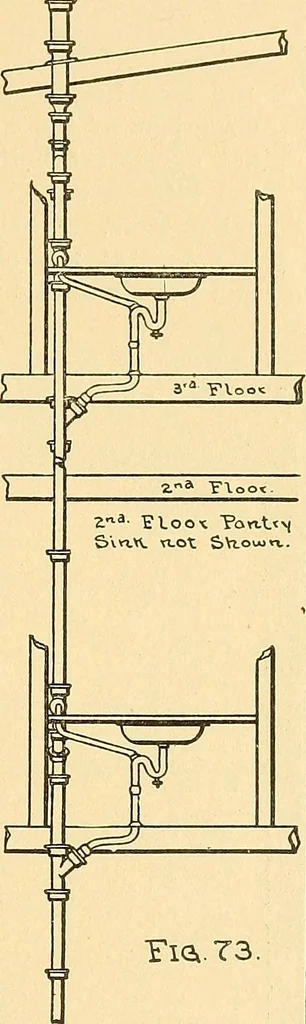

Tig, 7 2 3 … FlQi.73. CHAPTER XV IN the preceding chapter we showedelevations of the work of a three-flat apartment building, includingthe kitchen fixtures, pantry sinksand refrigerators. Owing to lack ofspace we omitted the elevation of thebath room work, and this we now show inFig. 74. In showing an elevation…
