Mechanical drawing for trade schools (1911)

Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 40

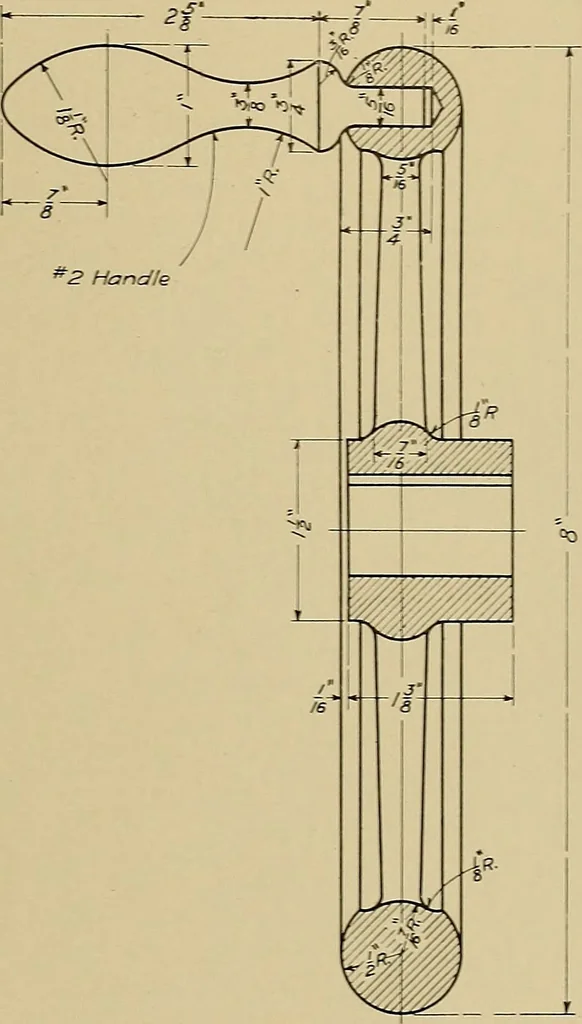

An illustration from Mechanical drawing for trade schools, 1911, leaf 40 — CLASS Indusirial .trade MoohinistNAM£ John yV. RobeHs. date THE CARNEGIE TECHNICAL SCHOOLS PITTSBURGH, PA. School of AppkehiTicES and Journeymen MECHANICAL DRAWINS 8 Hand lA/He^L SCALE Full Size Dws. iva. C-/009 LESSON No. 15, DRA\MNG TO SCALE.—In all of our previous lessons, thepieces illustrated…
