Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments, elementary instruction in practical mechanical drawing together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1883)

Rose, Joshua · Philadelphia, H.C. Baird & Co.; London, S. Low, Marston, Searle & Rivington · leaf 308

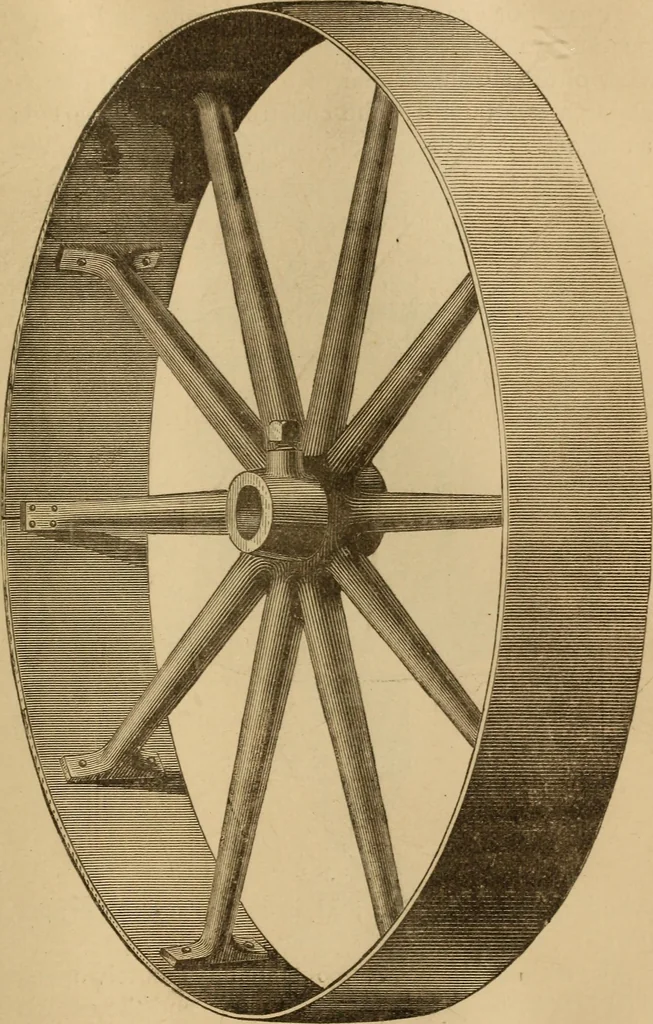

An illustration from Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments, elementary instruction in practical mechanical drawing together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers, 1883, leaf 308
iPage 282.) SHADING AND COLORING DRAWINGS. 283 I … Fig. 302. 284 MECHANICAL DRAWING SELF-7AUGBT. A superior example in shadingr is shown in Figures305 and 306, which represent a plan and a sectionalview of the steam-cylinder of a Blakes patent direct-acting steam-pump. The construction of the parts isas follows: A is the steam-piston ; H i and H…
