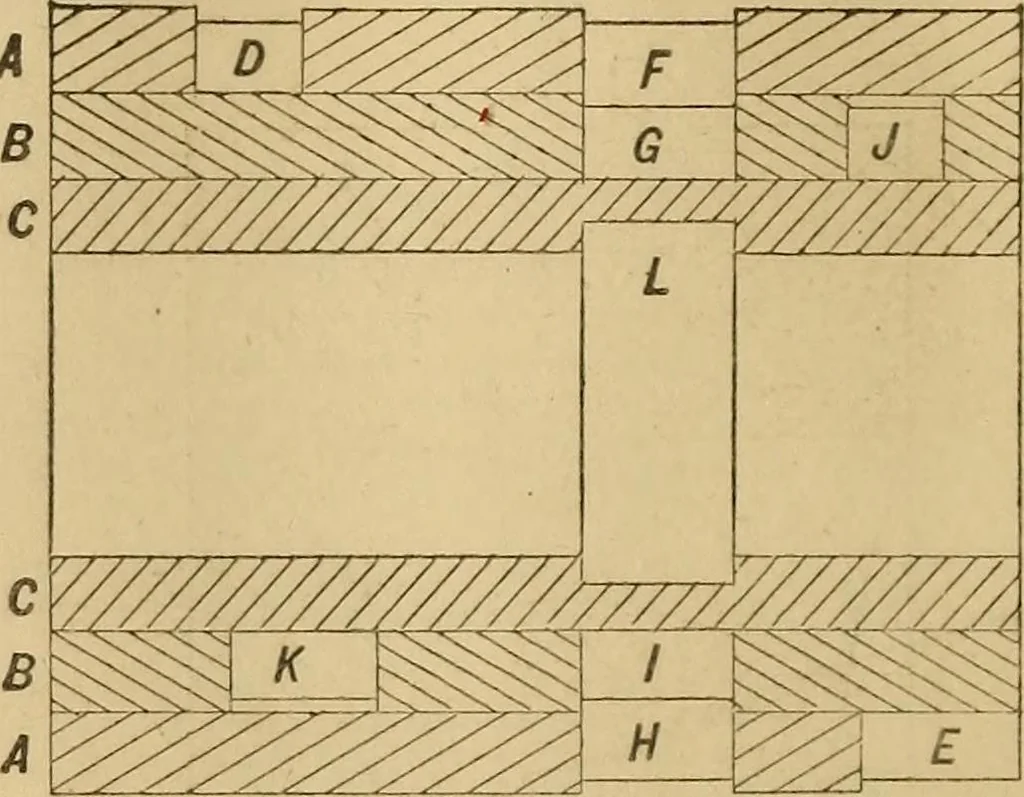

hell is shown to be in one piece from end toend, because the cross-hatching is not only equallyspaced, but the diagonals are in the same direction;hence it would be known that D, F, H, and E wereslots or recesses through the piece. The same re-marks apply to piece B, wherein G, J, K are recesses 8o… … Fig. 91. end, notwithstanding that the two ends are completelysevered where the slots G, I, come, because thespacing and direction of the cross-hatching are equalon each side of the slots, which they would not be ifthey were separate pieces.
