Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 14

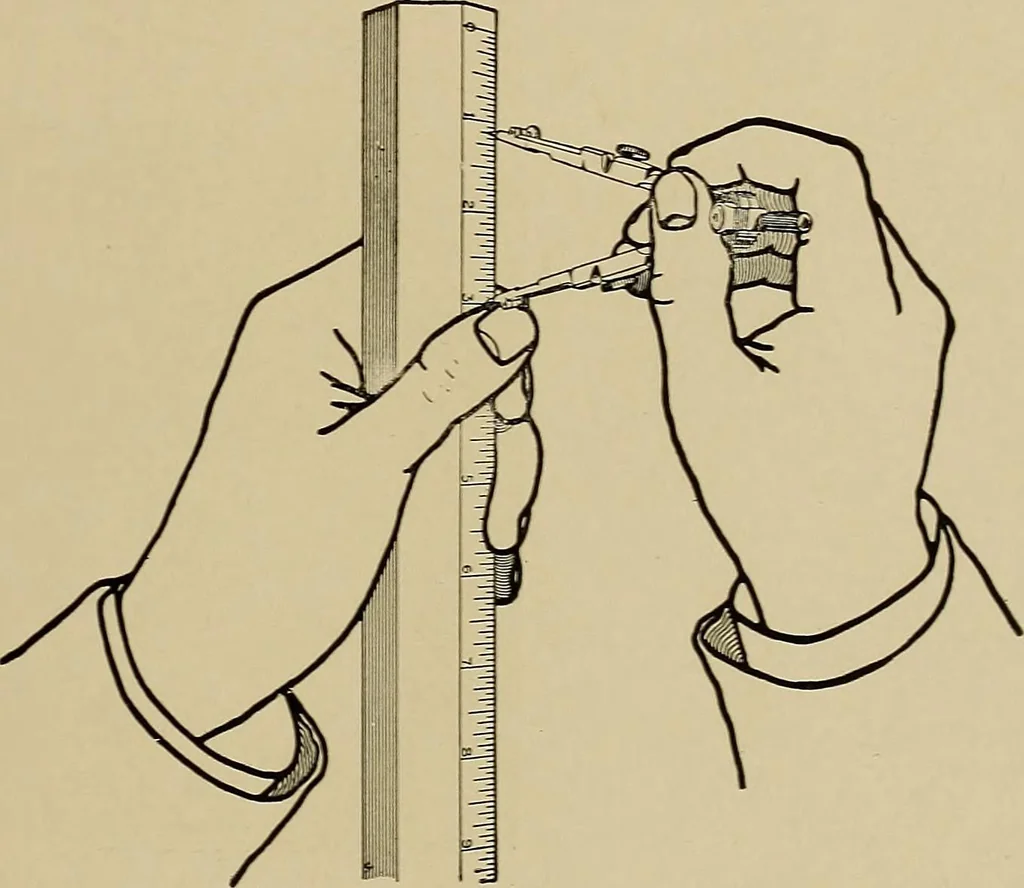

encilpoint should be set at right angles to the needle point and abouteven with the shoulder of the latter. After adjusting the lead properly, file off the corners of the flatpoint as shown in Fig. 6, and the result should be a fairly narrowflat pencil point, which is slightly shorter than the… … Fig. 7. in Fig. 8, throw in a i-inch circle. Test for accuracy by measuringthe finished circle with the scale. LESSON No. 3—Continued. Cover the drawing paper with circles, beginning with the i-inchcircle described, making each circle a little larger than the previousone. Set the compass points…
Mechanical drawing
