Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 24

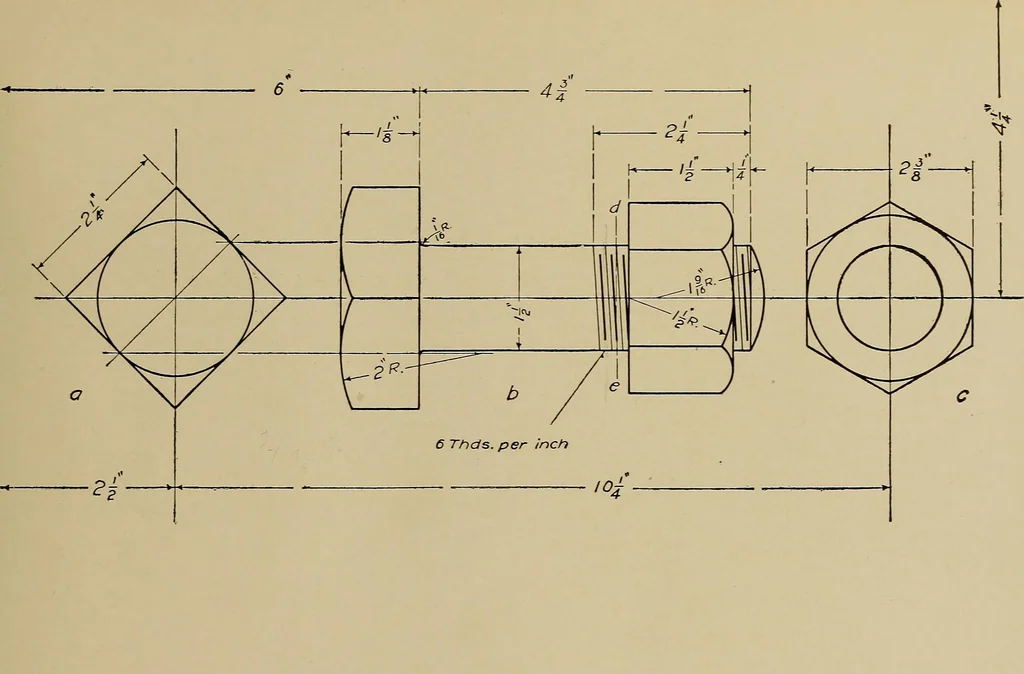

ines at one side and pass midway between that line andthe next at the opposite side, as indicated by the light dash line d-e.In other words, the slope equals half of the pitch of the thread. Place the dimensions just as shown in the illustration, and makethe figures carefully, so that there can be… … class Industrial hamc John W. Roberts date Feb. P0_ 06. The Carnegie: Institute or Technology PITTSBURGH, PA. Machine Bolt scale. Full Size owg.no. C-f002 LESSON No. 9. HIDDEN SURFACES.—Until the present time we have beenusing lines which could be seen on the surface, or which repre-sented the…
Mechanical drawing
