Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 44

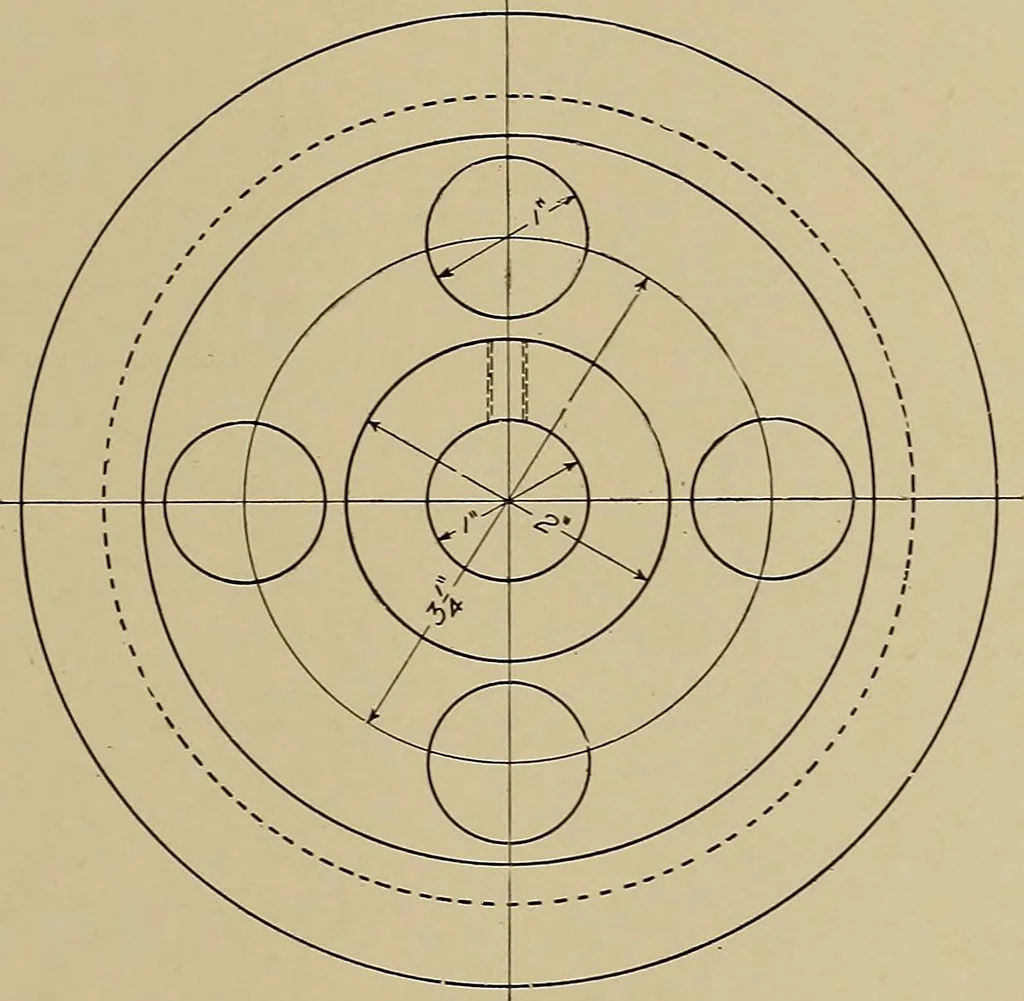

ike when cut in half along the vertical centerline. Make a free-hand sketch of the pulley, copying carefully alldimensions and necessary information. From this sketch make afull-size pencil drawing of the pulley, placing all dimensions just asshown on the illustration. When dimensioning a drawing,…
Mechanical drawing
