Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 56

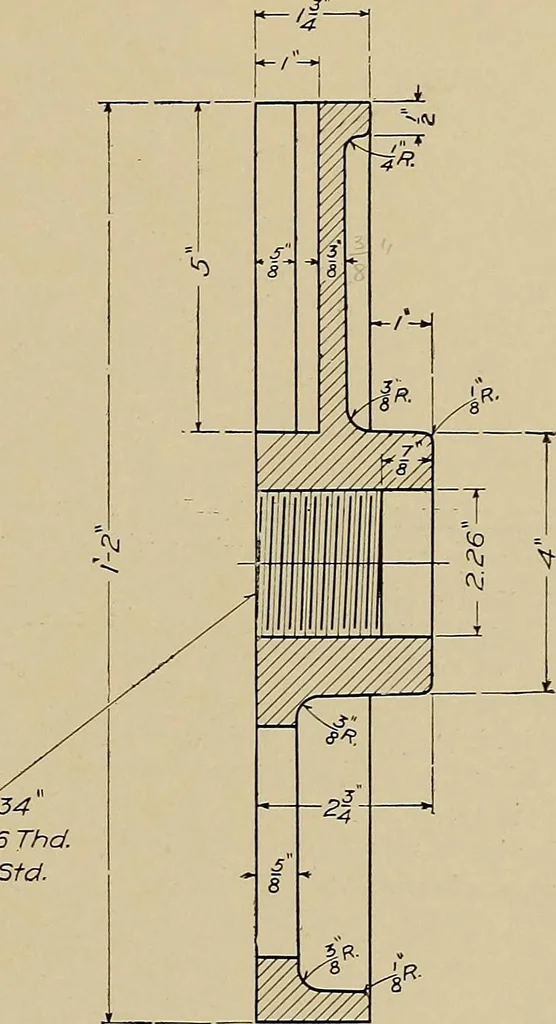

Section C-D Bore 2.034Tap 2£~ 6 Thd.U. S, Std. … Section A~B class Industrialnamc John W. Roberts The Carnegie Institute or Technology PITTSBURGH. PA. datc Oct20-06, Lathe Face Plate scale ■$ size owa.No.C-1016 LESSON No. 25. ASSEMBLY DRAWINGS.—It is a common practice in mostdrafting rooms to make drawings which show the various partsof some…
Mechanical drawing
