Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 72

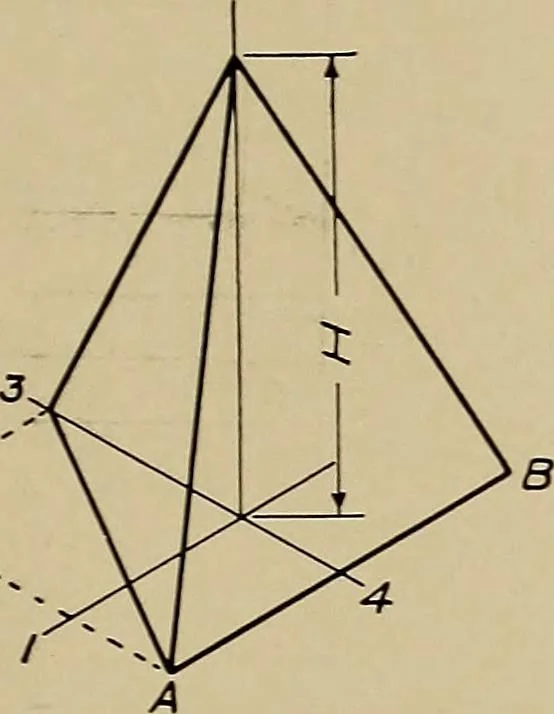

Fig. 19. then draw a rectangular figure about the top view (as indicatedby ABCD). This gives a figure that parallels the isometric axesand on which we may locate the base of the pyramid. After thishas been done, find the point of intersection of the axes (1-2 and 3-4)on this figure, and from this…
