Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1889)

Rose, Joshua · Philaelphia, H.C. Baird & co.; [etc., etc.] · leaf 81

An illustration from Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers, 1889, leaf 81

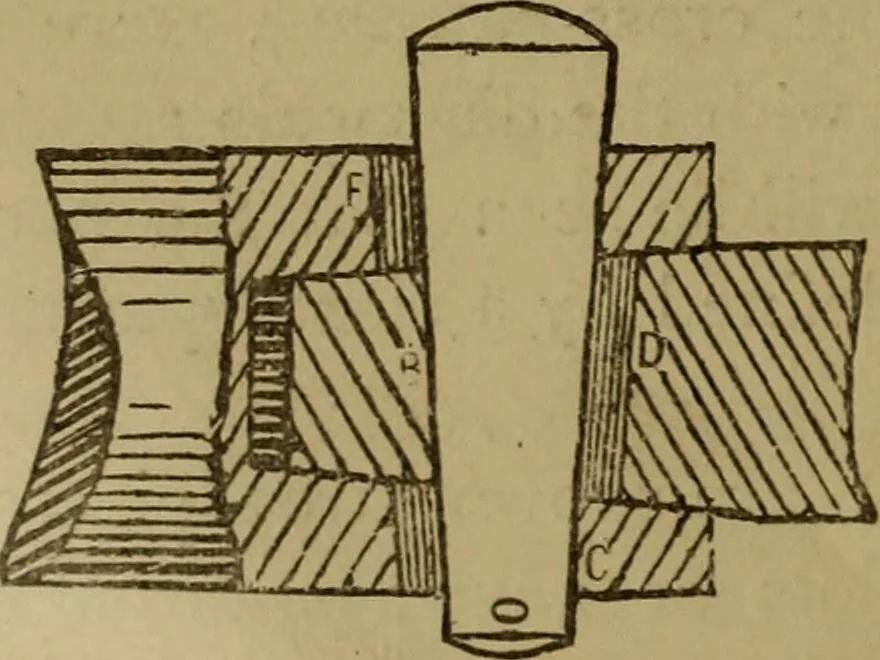

end, notwithstanding that the two ends are completelysevered where the slots G, I, come, because thespacing and direction of the. cross-hatching are equalon each side of the slots, which they would not be ifthey were separate pieces. … Fig. 92. Section shading or cross-hatching may sometimescause the lines of the drawing to appear crooked tothe eye. Thus, in Figure 92, the key edge on theright appears curved inwards, while on the left SHADOW LINES AND LINE SHADING. 81 the key edge appears curved outwards, although suchis not…

Mechanical drawing

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
