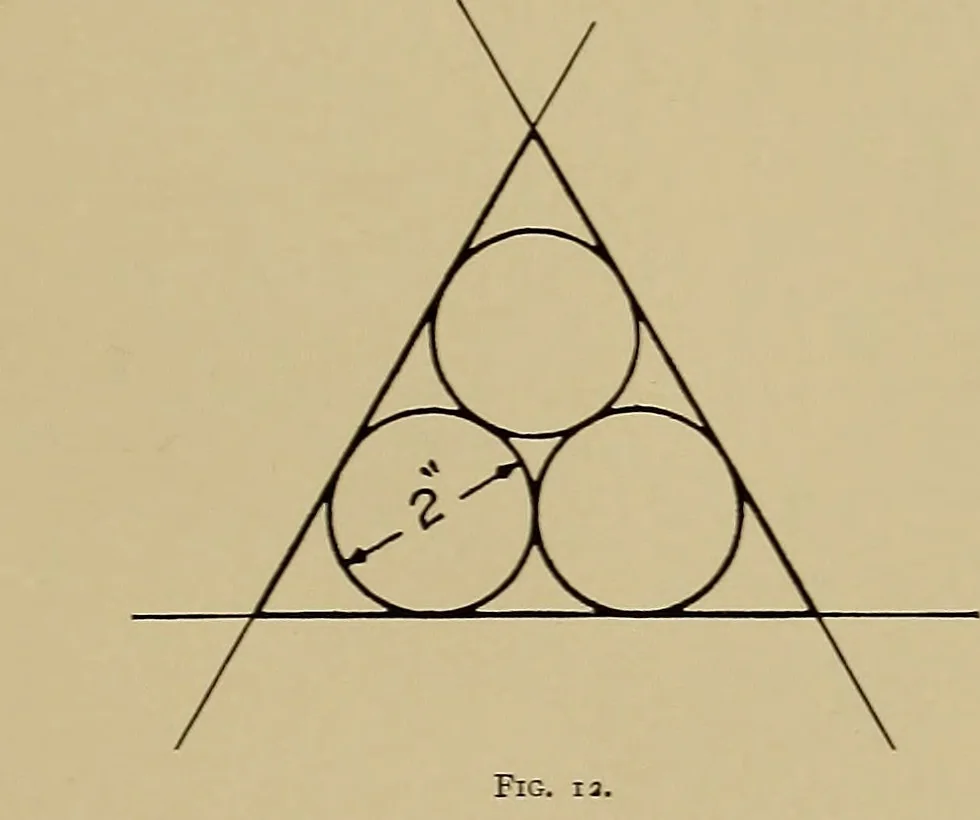

one counter-clockwise.The result should be one clear sharp circle; if this is not the case, thelead should be adjusted to correct the error. SETTING COMPASS.—With the large compass, take a radiusof i^ inches and describe a 3-inch circle. Now, test the circle for a diameter of 3 inches, using the… … Fig. 13. TANGENT CIRCLES.—TRIANGLE.—Describe three 2-mchcircles tangent to one another. Surround the circles by a tangent triangle. Line in the triangleand test it for accuracy, using the dividers; the sides should be ofequal length. Repeat this three times. Great care should he exercised by the…
