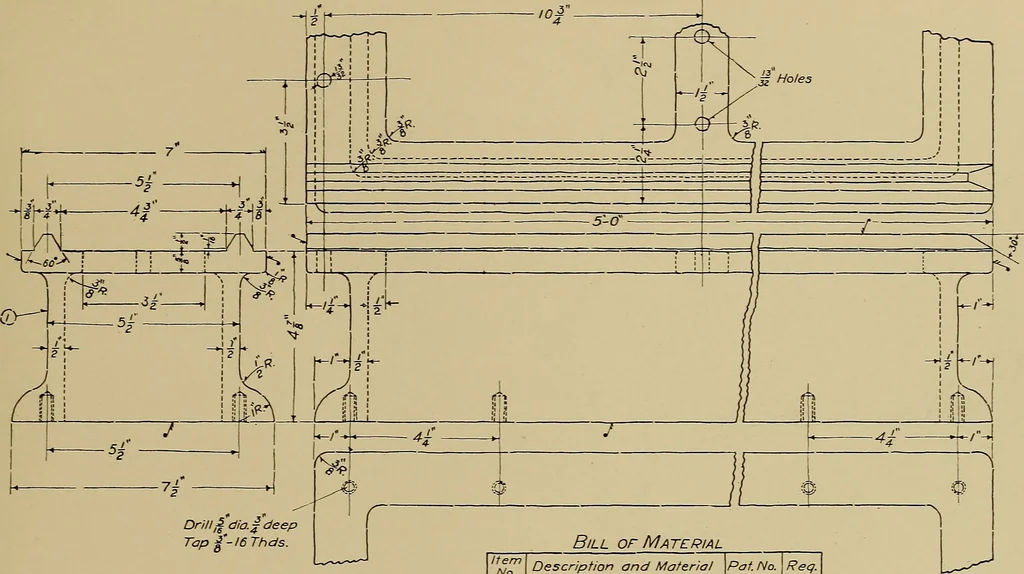

of the top and bottom of the bed are intendedto show more clearly the shape of the corners, the sizes of fillets, andto show the position of bolt holes. The student should refer to the leg drawing, C-1026, if he desiresto see whether the positions of the clearance holes in the top view ofthe leg… … Drill,^ dia^ deepTap f-l6Thds. Bill or Material / ItemNo. Description and Material Pat No. Reg. ^ Bed C.I. 71 1 C2J ixiiHex.Hd. Cap 5c. 6 CLASS Industrial nrAoe Machinist NAME John W.Roberts datc Afay 10-07. THE CARNEGIE TECHNICAL SCHOOLS PITTSBURGH, PA.SCHOOL OF APPf^NTICES AND…
Mechanical drawing
