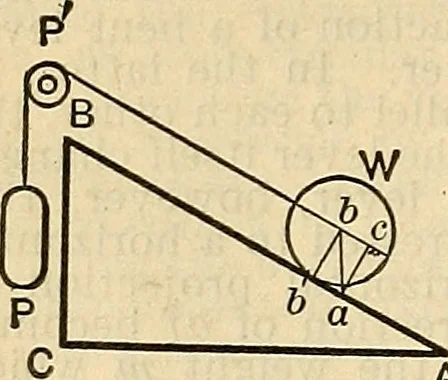

ction, in a directionat right angles to the direction of the resistance, the other end of one ofthe struts resting against a fixed abutment, and that of the other againstthe body to be moved. If a=the angle each strut makes with the straightline joining the points about which their outer ends… … Fig. 109. The toggle-joint is used where great resistances are to be overcomethrough very small distances, as in stone-crushers (Fig. 108). The Inclined Plane, as a mechanical element, is supposed perfectlyhard and smooth, unless friction be considered. It assists in sustaininga heavy body by its…
