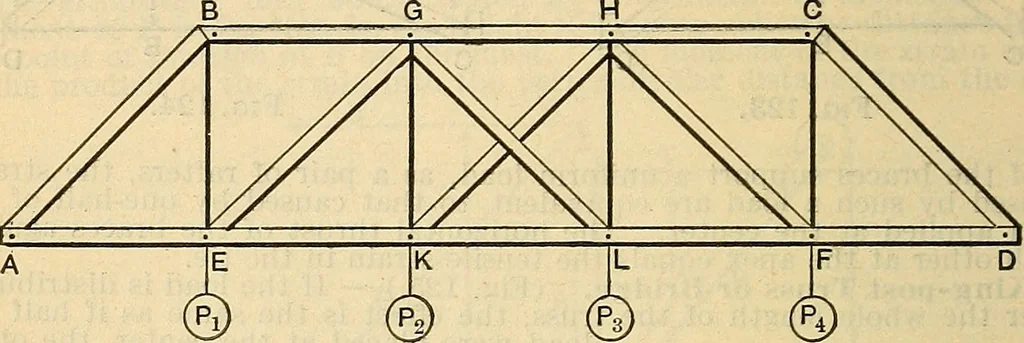

Fig. 128. … Fig. 129. strain on BE or CF = Pi + P2. That portion of the truss between Eand P may be considered as a smaller queen-post truss, supporting theloads P2, Pz at K and L. The strain on EG or HF = P2 X EG + GK.The diagonals GL and KH receive no strain unless the truss is unequallyloaded. The verticals…
