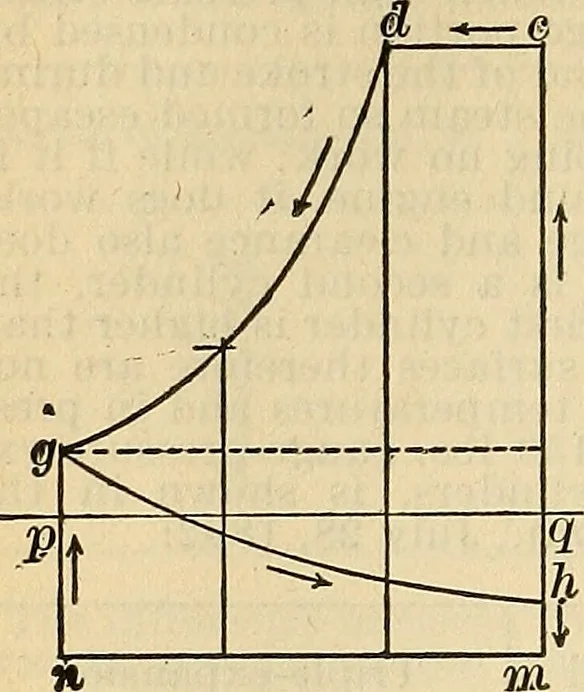

at the initialpressure in the second cylinder is equal to the final pressure in the first,and of course eaual to the pressure in the receiver, the volume cut off inthe second cylinder must be equal to the volume of the first cylinder, forthe second cylinder must admit as much steam at each stroke… … fj y I ^y p 2 1 3 ^60 lbs r rd* -40 i— —%- -W--» -20 i/ / h - P k-o 7 —^ 1 Fig. 159. —Receiver-engine,Ideal Indicator-diagram. Fig. 160. —Receiver Engine, IdealDiagrams Reduced and Combined.In the region below the exhaust-line of the first cylinder, between it andthe line of perfect vacuum, ol, the…
