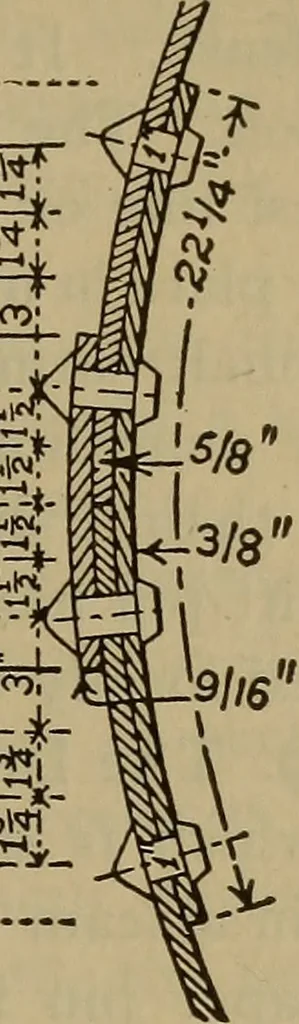

exposed to fire. The special joints are departures from thefour conventional types, seeking to secure the features of thedouble butt with less expense. Figs. 337, 338, and 339 will THE STEAM-BOILER. GENERAL CONSTRUCTION, 405 serve as types of such joints. The strength of single lap-joints being… … -v4- Fig. 339. joints as Fig. 339 will show a strength of 85 per cent of thesolid plate. 218. Failure of the Riveted Joint.—While the rivetedjoint fails in one of two generic ways, either by shear of therivets or by failure of the plate, the latter may occur inseveral ways. The rivet may {c) buckle…
