Hutton, Frederick Remsen, 1853- [from old catalog] · New York, J. Wiley & sons; [etc., etc.] · leaf 447

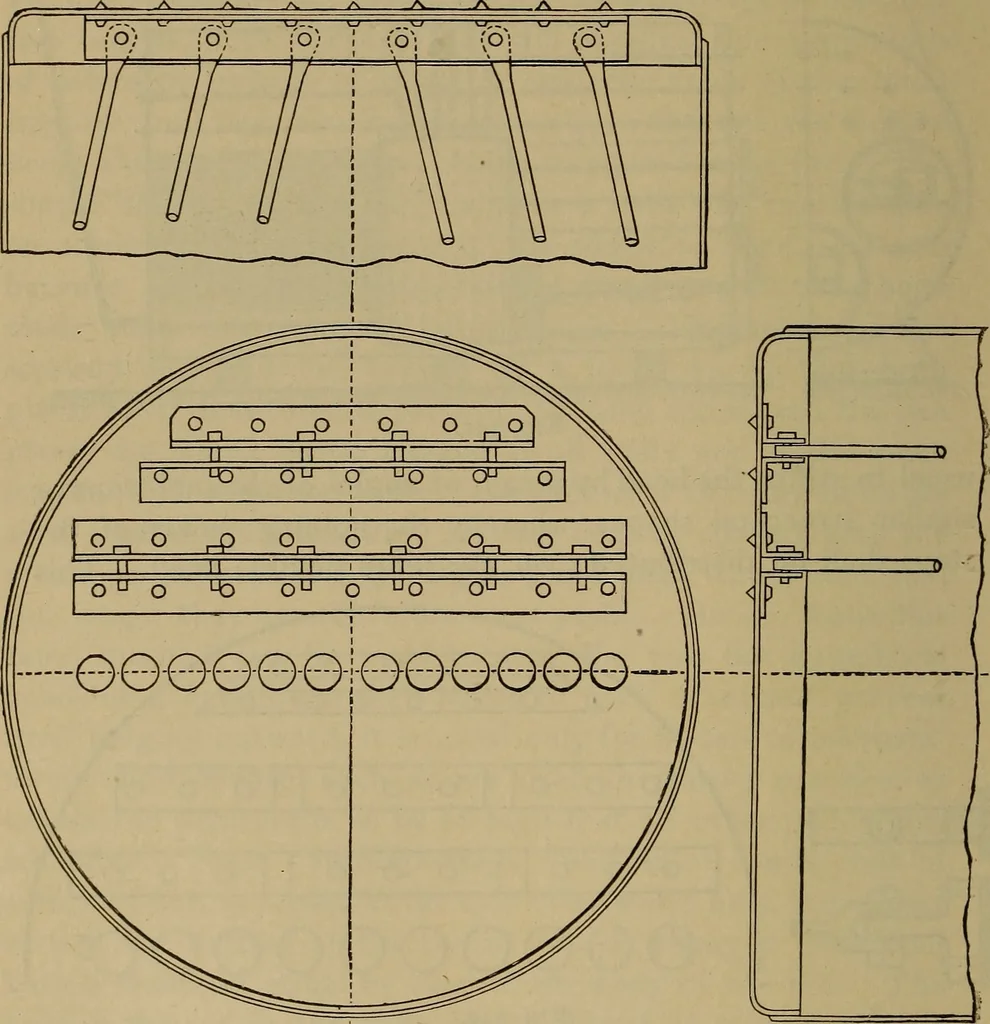

the stay-rod has been fastened to stay-bars on the heads by a pin-joint. Fig. 342 shows a form of 4IO MECHANICAL ENGINEERING OF POWER PLANTS, this method where the stay-bars are relatively heavy forgingsof two to two and a half inches square, with lugs bump-weldedon the inside. The stay-rod ends in… … Fig. 343. irons are riveted to the head, and the stays pinned to them bypins in single or double shear; but in these arrangements theobliquity of the stay-rod indicates a prevalent arrangement formedium pressures. The inner end of the stay-rod in this case THE STEAM-BOILER. GENERAL CONSTRUCTION, 4ir
Mechanical engineering · Steam power plants
