Hutton, Frederick Remsen, 1853- [from old catalog] · New York, J. Wiley & sons; [etc., etc.] · leaf 537

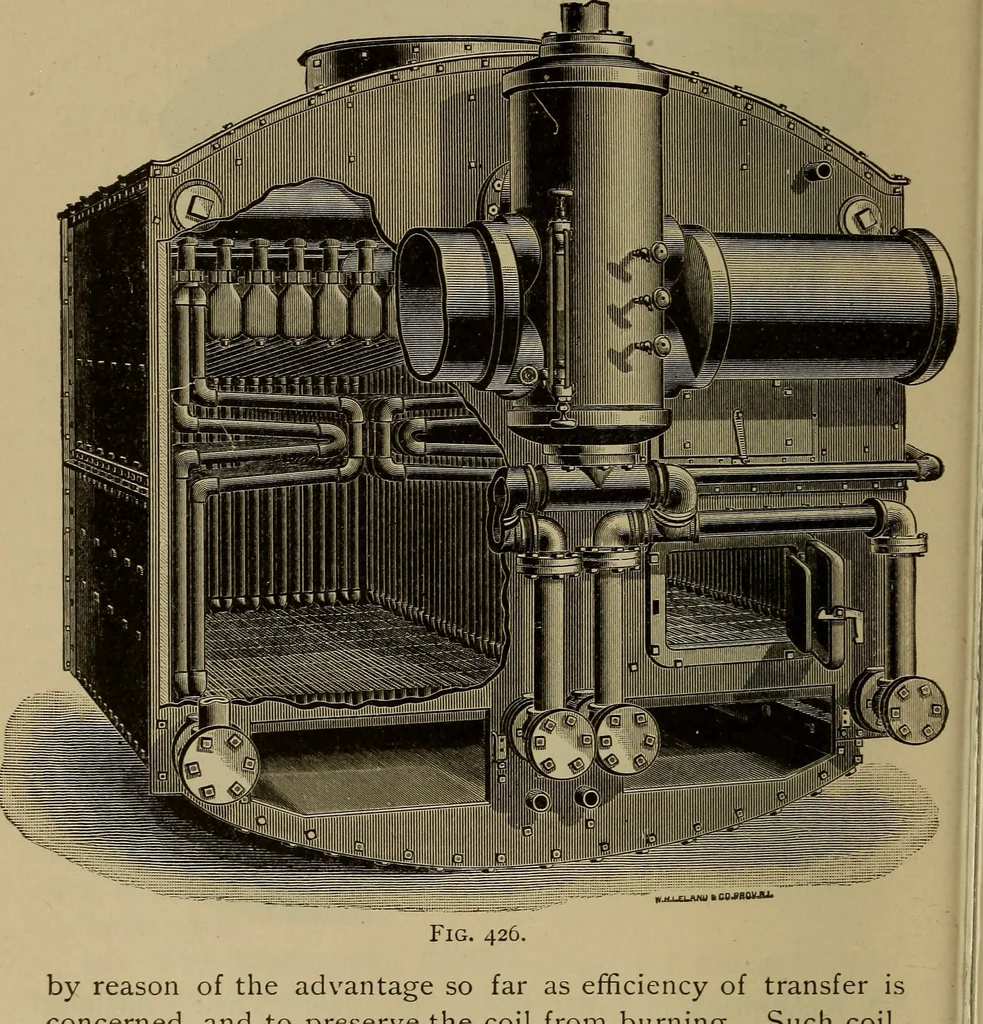

at further discussion isnot called for. 262. The Coil-boiler.—The coil-boiler differs from thoseabove mentioned in that one or a limited number of continuous 500 MECHANICAL ENGINEERING OF POWER PLANTS. coils is used instead of a large number of short or separatecircuits. The steam formed near the… … Fig. 426. by reason of the advantage so far as efficiency of transfer isconcerned, and to preserve the coil from burning. Such coil-boilers have given very large results for their size in experi-mental forms. The two best-known types are identified withthe names of Herreshoff and Trowbridge (Fig.…
Mechanical engineering · Steam power plants
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
