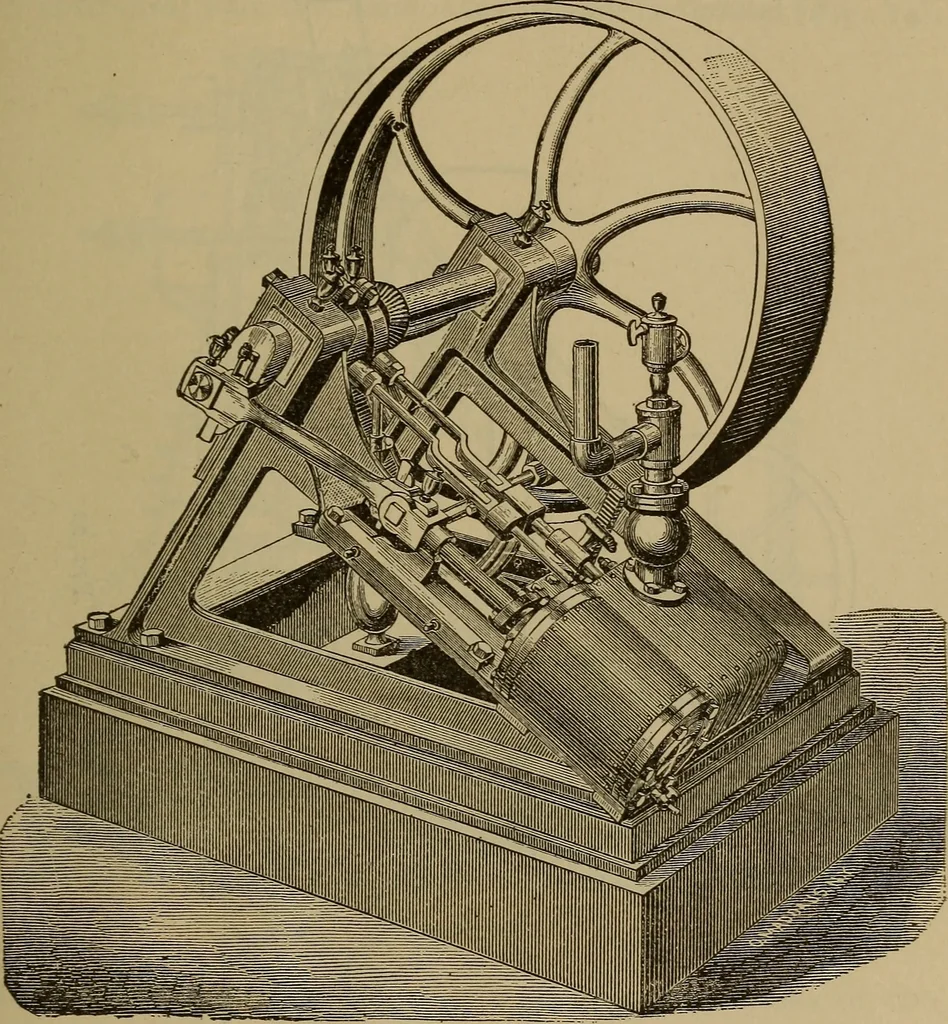

THE MECHANISM OF ENGINES. 39 structure. For stationary practice the inclined engine hasbeen almost limited either to very small designs or to thepractice of pumping-engines. For small designs (Fig. 2i)it permits the use of the large-diameter fly-wheel without … Fig. 21. the necessity of a pit below the general level, and for pump-ing-engines it permits a symmetrical arrangement of twocylinders or four cylinders with the pumps below them onthe same rods, and yet the engine does not extend over sogreat an area of ground-plan. In the design exhibited inFig.…
