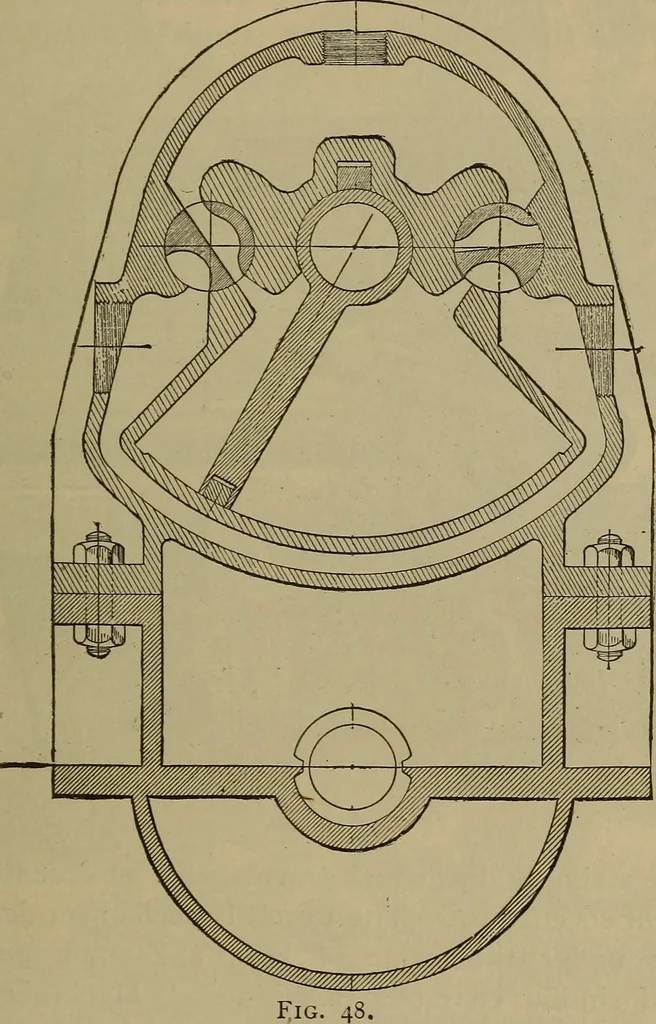

ary-engine design and yet permits expansive working. What are called disk-engines are of two great types. Thefirst might properly be called a vibrating-piston engine or THE MECHANISM OF ENGINES. 6s sometimes a pendulum-engine, such as is shown in Fig. 48.It will be seen that a flat flap or disk… … the beam-engine. This design was proposed many years ago^by Captain Ericsson. A more usual form of engine in which a vibrating-pressureorgan forms a part is that presented in Fig. 49. This showsa disk B against whch press six single-acting pistons which. ^66 MECHANICAL ENGINEERING OF POWER PLANTS.…
