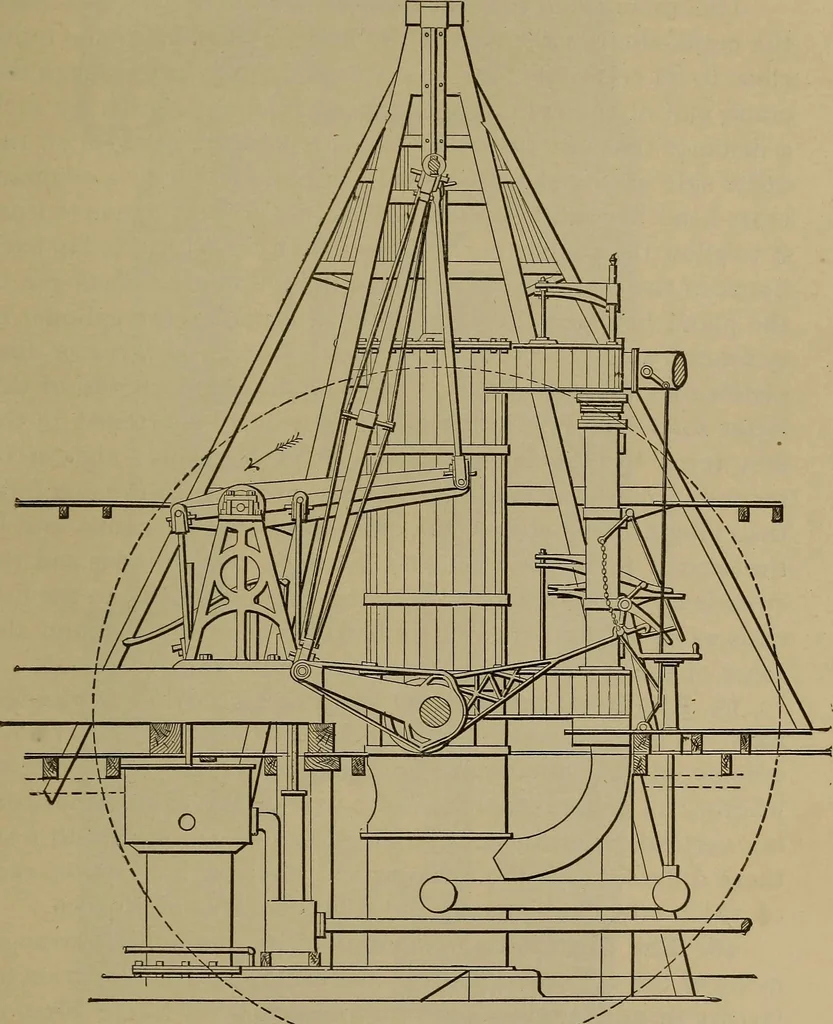

two connecting-rods may go to independent crank-pins, or thetwo connecting-rods may join behind the cylinder to formone, which in the axis of the cylinder at the back will trans- THE MECHANISM OF ENGINES, 25 mit the effort to a single pin. This type of design is by nomeans unusual for pumps,… … Bradley § Poates, Engr!s,_NJ?. Fig. 11. engines, but has ceased to be in as general use for other pur-poses as in the beginning of steam-navigation. Fig. 11 26 MECHANICAL ENGINEERING OF POWER PLANTS. shows this mechanism as it is applied to a paddle-wheelsteamer still in use for towing upon the…
