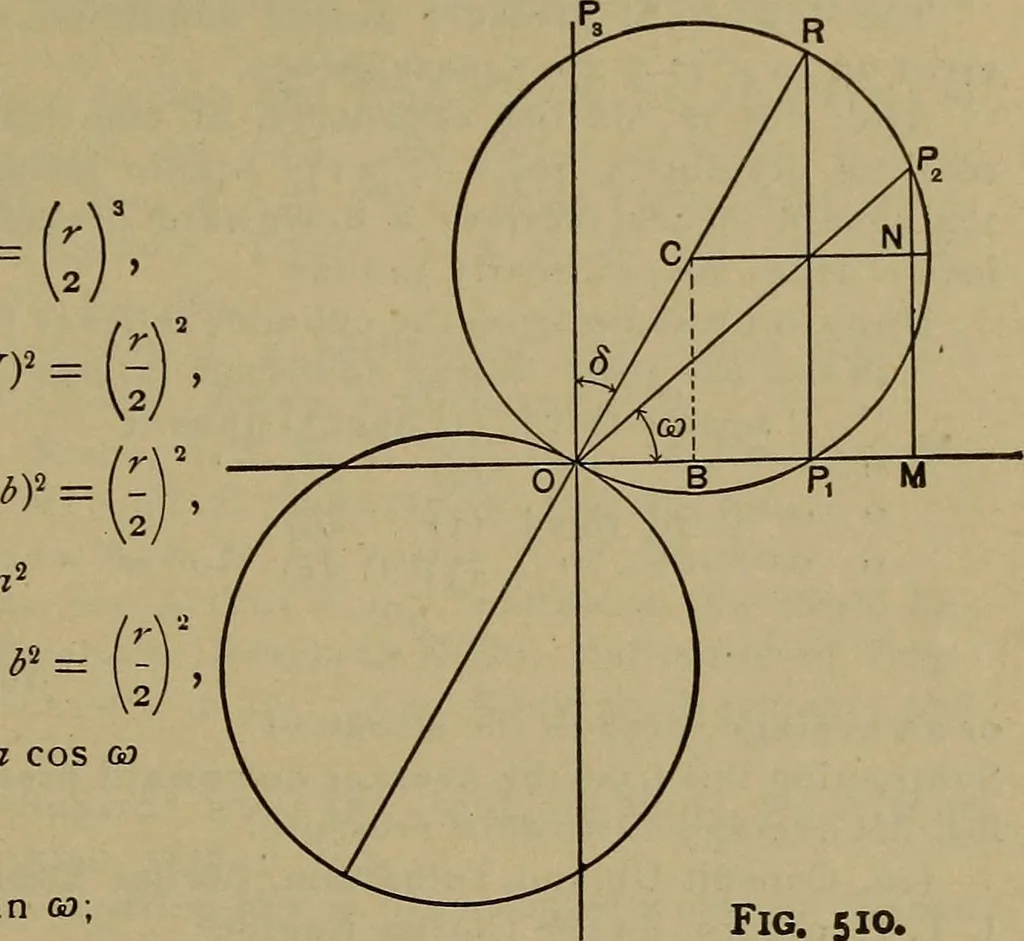

in the circumference of a circle the co-ordinates of whose centre APPENDIX. 685 are OB— a — - and BC= b — -, and whose diameter is r. For if P% be 2 2 any point whose radius vector is OP* and the angle MOP = a?, then if OM — £ cos go,and J//* = ^ sin wit can be proved that CN* + NP*1 = CP* = ( OM-… … Fig. 510. 2a = A and lb = i?,£ = A cos go 4- -# sin co.Or in other words, the motion of the valve from its central position may berepresented by, or replaced by, the length of the radius vector of a polarcircle, whose diameter is the throw of the valve. The radius vector whengo is zero determines…
