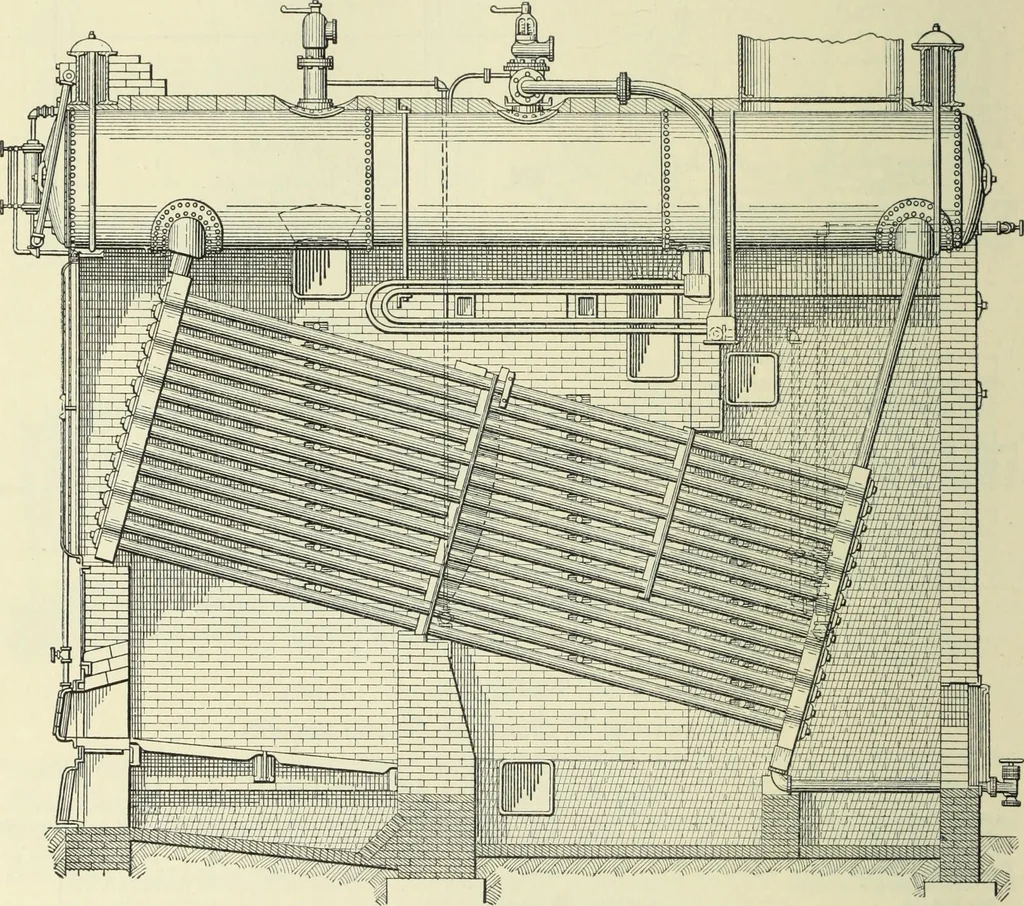

. per sq. inch. Thepressed-steel head is equipped with circular outside handhole fittings. Boilers of the longitudinaldrum type are suspended front and rear from wrought-steel supporting frames carried by crosschannels attached to steel columns. This allows for contraction and expansion of the… … Fig. 22. Wrought-Steel, Inclined Header, Longitudinal Drum Babcock & Wilcox Boiler,Equipped with Babcock_& Wilcox Superheater. headers is made up of a forged steel box iy2 in. square and of such a length as to be con-nected to all of the headers by means of short nipples. The mud drum is…
