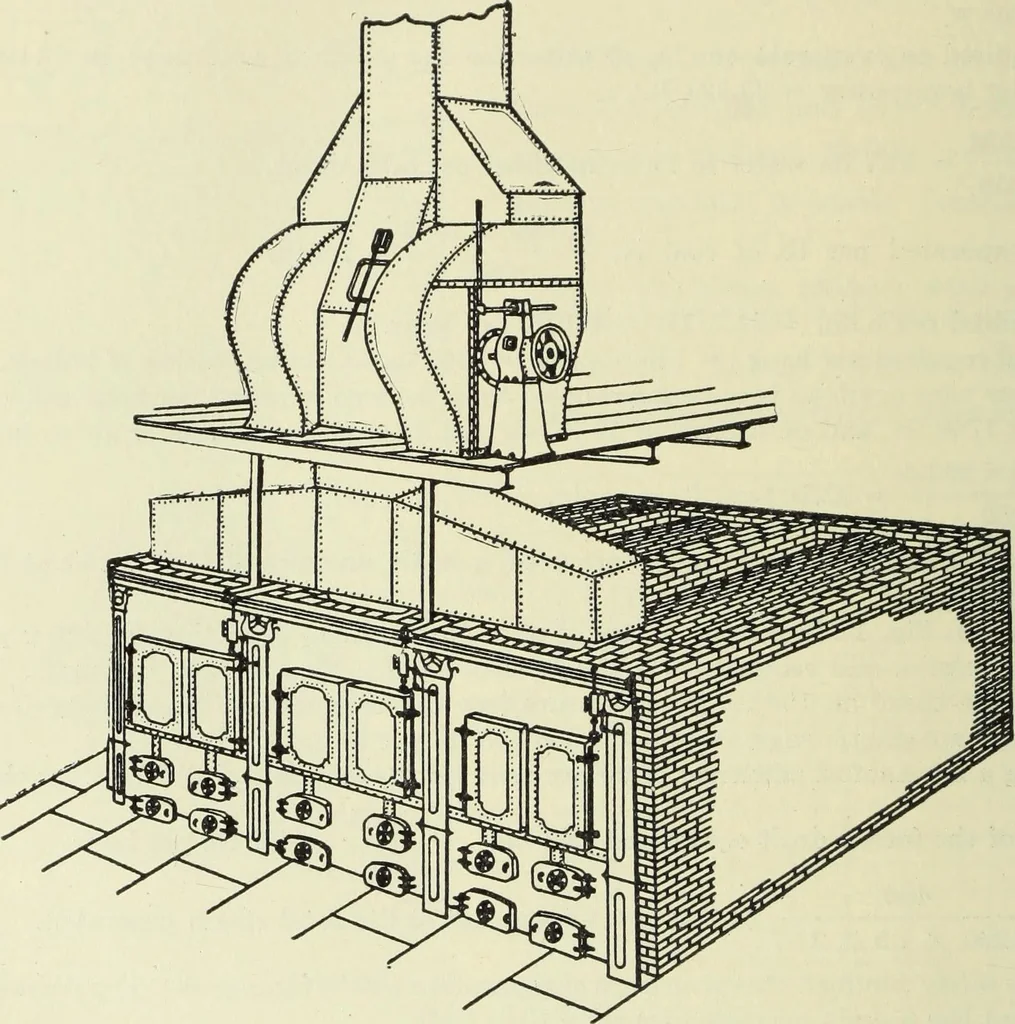

ata may be used in calculating an induced draft installation. 200 POWER PLANTS AND REFRIGERATION Temperature of Gases. 550° F. without economizers, and 350° F. with economizers. Volume of Gases based on 19 lb. air per lb. of coal, the volume of gases will be: 388 cu. ft.at 350° F. and 482 cu. ft.… … Fig. 13. Typical Induced Draft Installation. Example. Required the size of fan and power necessary for the boiler plant in the precedingexample based on a 50 per cent overload. 7740 X 482The volume of gases generated per minute is: — = 61,920 cu. ft. The static pressure rating of fan to be \%…
