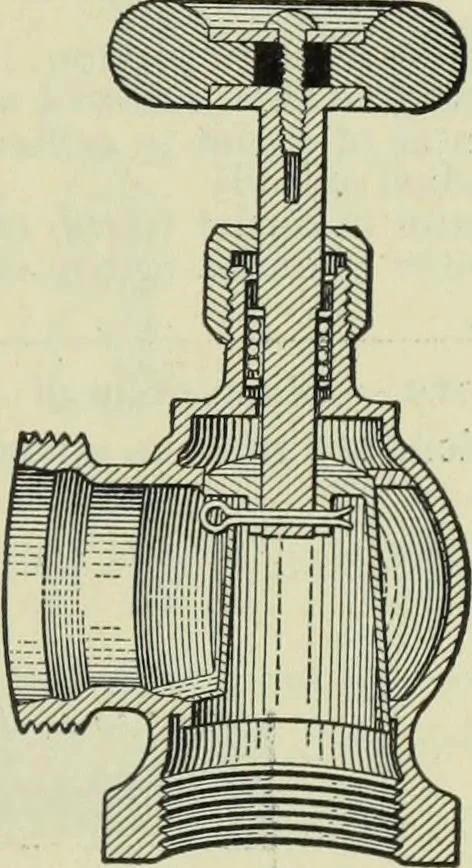

Fig. 30. Offset Corner Valvewith Male Union, Right Hand: Fig. 29. Steam Radiator Valve—Angle Pattern (Jenkins Bros.). Description of Parts. WheelLock NutSpindleBonnetDisc Holder 6. Disc 7. Waste Nut 8. Wheel Nut 9. Disc Nut10. Body 11. Union Nut 12. Union Nipple 13. Bottom Plate 14. Wood Wheel 15.… … Fig. 31. Quick-Opening HotWater Radiator Valve. an opening in the valve body, is more generally used on water work than the butterflytype of valve referred to above. The valve shown has a conical shell and globe-shapedbody, which helps materially to do away with the sticking of the shell, since…
