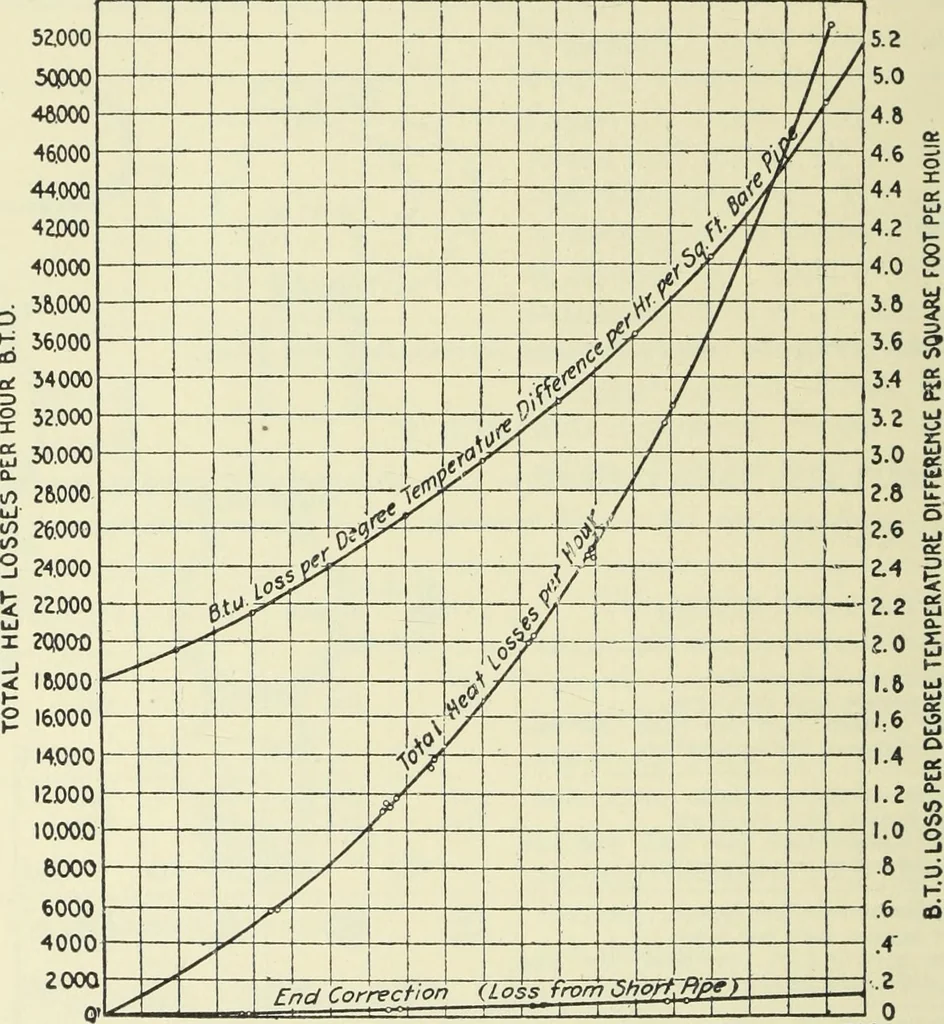

. Theordinate of any point is the total heat loss per hour, which is the equivalent of the electrical energyrequired to maintain the pipe at the given temperature, and the abscissa is the difference between pipetemperature and room temperature. On the same sheet is.plotted a curve of heat losses… … 50 100 150 200 250 300 350 400TEMPERATURE DIFFERENCE-DEGREES FAHRENHEIT(PIPE TEMP.-ROOM TEMP.) 450 500 Fig. 36. Test of Bare Pipe.(L. B. McMillan.) heat loss per hour from the 15-ft. length of bare pipe. This net loss divided by the temperature differ-ence and the area of test section (22.03 sq.…
