Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 554

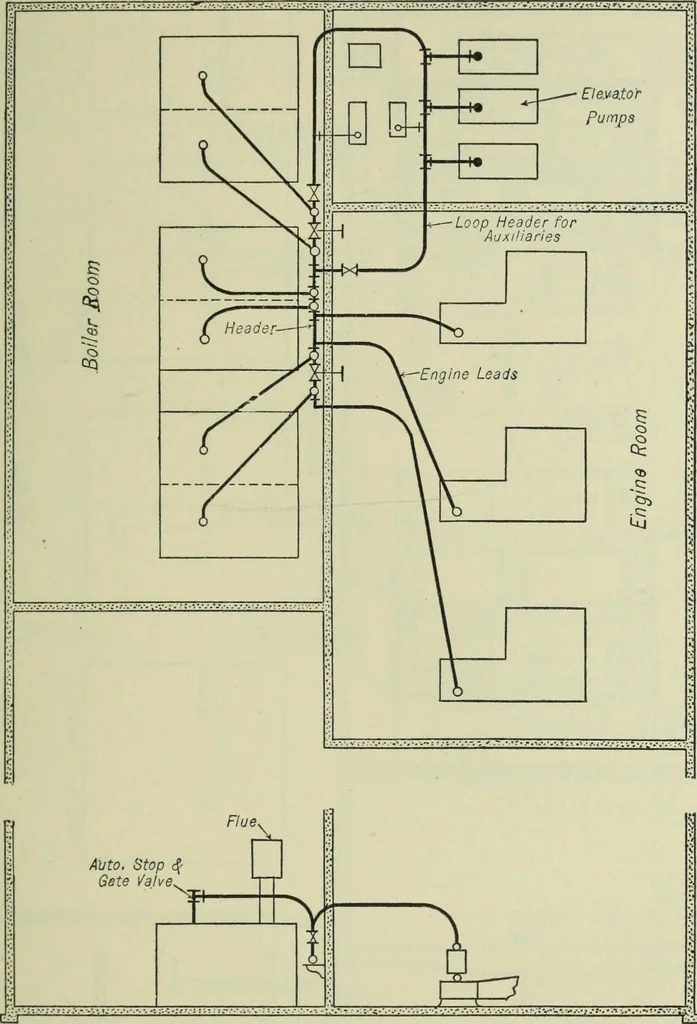

er. The subdivision of the header also makes it possible to divide the station into independentunits, which is frequently advantageous for testing purposes. POWER PLANT PIPING 529 Details of a single-header system, back to back arrangement of plant, for a medium-size plant are shown by Figs, la and… … -••••-^-•■-••■•£a Fig. 3. Spider System. this section, if properly valved, may be cut out of service and steam from the remaining boilersdelivered to the prime movers in either direction. i The chief disadvantages of this system lie in its excessive cost, inconvenience in makingfuture extension,…
Building · Heating · Ventilation
