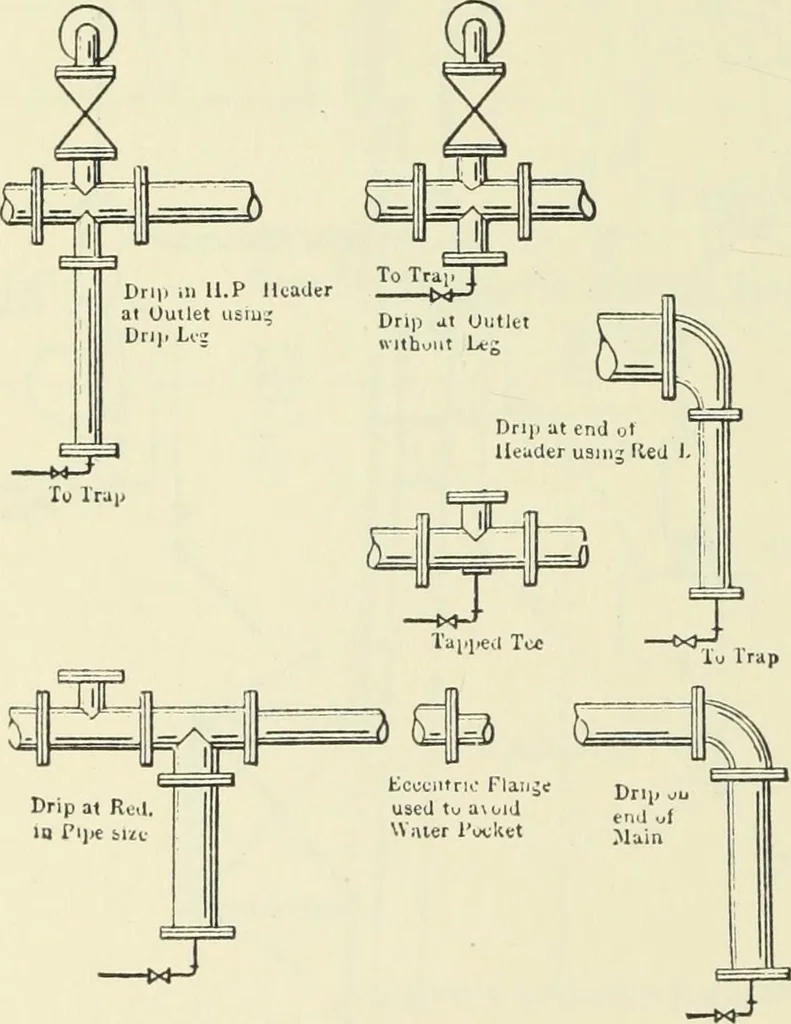

ank, and, to further aid the system, a check valve is placednear the boiler in the return line, which prevents the water from rising in the return line of theother side of the system should it be closed for any reason. Connections are made to the bottom of the steam line at all points where it is… … Fig. 28. Dhip Details. POWER PLANT PIPING 551 main steam line. From the bottom of the receiver is connected a lj^-in. riser, in which longbends are used in place of ells and through which the slugs of water and steam rise to the dischargetank located 35 ft. above the water-line of the boilers. In…
