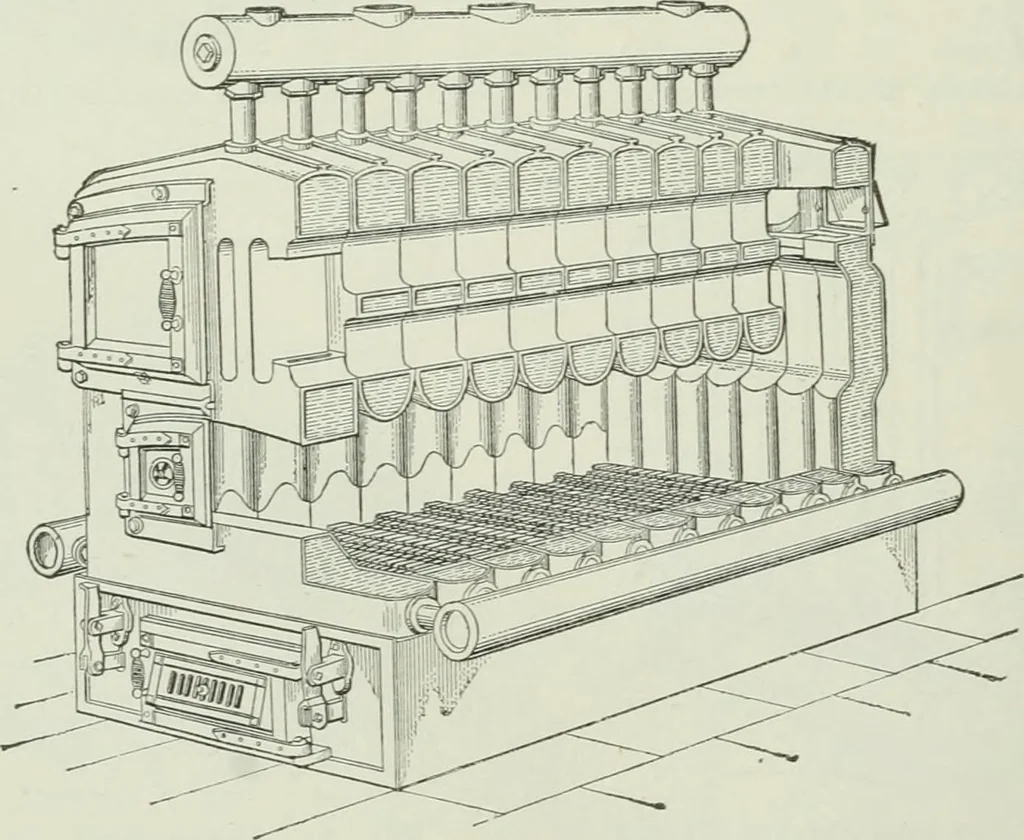

are either arranged vertically and stand on end forming a Sectional Boiler (Figs. 3 and4), or else are placed horizontally forming a Round Boiler (Figs. 11 and 12). The former;irrangement is used almost exclusively for boilers of tlio larger sizes having a steam rating of1800 sq. ft. and above.… … Fig. 8. Mercer Cast-Iron Sectional Boiler, Header Type. (U. B. Smith Co.) STEAM HEATING BOILERS AND HOT-WATER HEATERS 141 TABLE 4 DIMENSIONS AND CAPACITIES OF SECTIONAL CAST-IRON BOILERSAmerican Radiator Co. Steam Boilers WaterBoilers^ Number Length, GrateTotal Area,Inches Sq. Ft. Ave.…
