Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 206

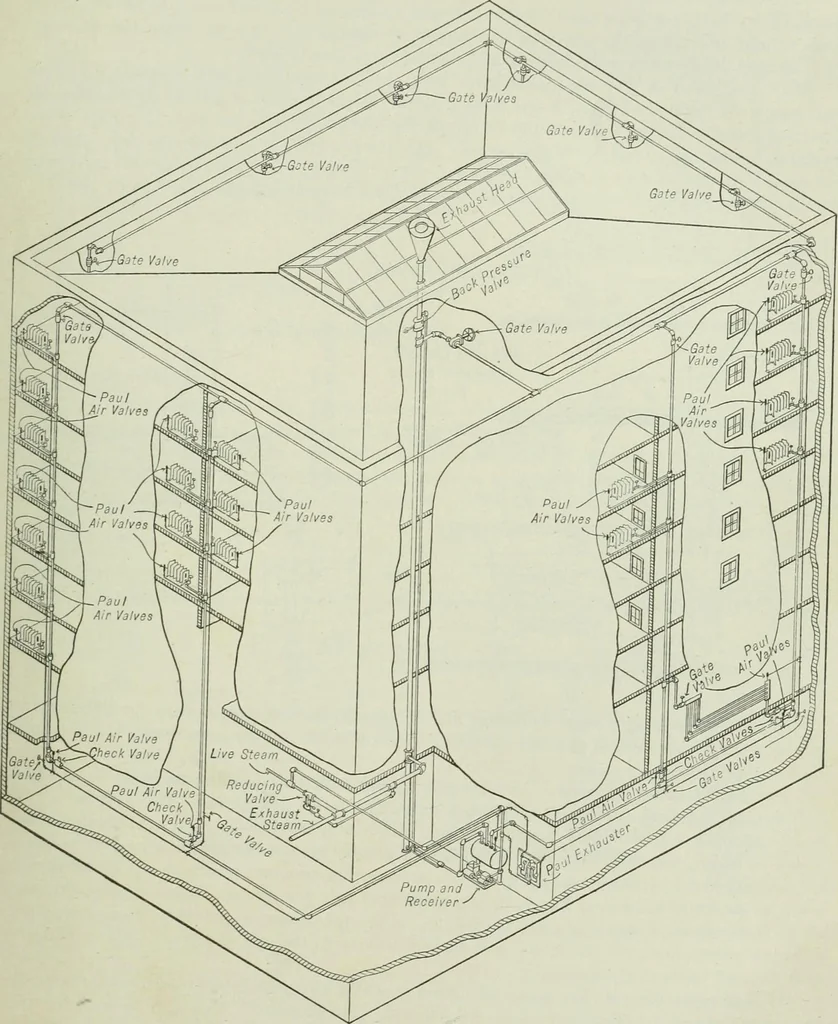

anches, risers, andradiator branches. This necessitates larger piping and valves than in any other steam system, 194 DIRECT STEAM HEATING 195 and especially is this true of the main, which must bo run full size from boiler to drop unles^dipped as shown under p.ping details. See Fig. 6. and… … Fig. 0. Single Pipe Overhead Down-feed or Mills System.iPaul Air Line; lOG HEATING AND VENTILATION diator condensation, and is itself dripped at intervals into the return main, which may run dryor wet. This makes it possible (1) to reduce the size of main as radiation is taken oflf, (2) to…
