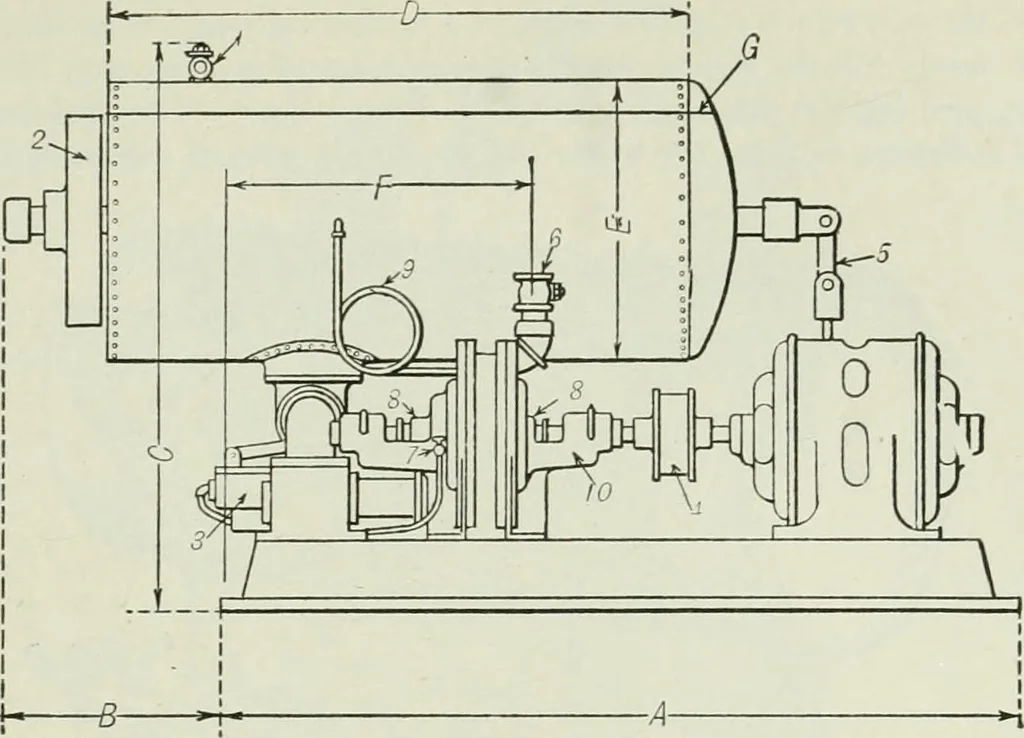

An illustration from Mechanical equipment of buildings; a reference book for engineers and architects, 1916, leaf 220 — ock and Relief Valve. 2. Counter Weight. 3. Automatic Boiler Feed Valve. 4. Flexible Coupling. 5. Connection to Automatic Switch. 6. Discharge of Pump. © K/4 Fig. 29. Pump Parts 7. Boiler Feed Regulating Valve. 8. Packing Glands. 9. Steam Tube. 10. Outboard Ring-oiled Bearing. 11. Babbitt Bearings… … Fig. 30. TABLE 5DIMENSIONS OF CHICAGO CONDENSATION PUMPS. (See Fig. 30.) Dimension 25,000 20,000 15,000 10,000 6,000 3,000 1,000 Sq. Ft.* Sq. Ft. Sq. Ft. Sq. Ft. Sq. Ft. Sq. Ft. Sq. Ft. A 52 52 52 46 46 46 30 B 181., 18}^ 18)2 182 12 9 8 C 38 38 38 33 33 33 26 D 48 48 48 48 36 30 30 E 16 16 16 16…
