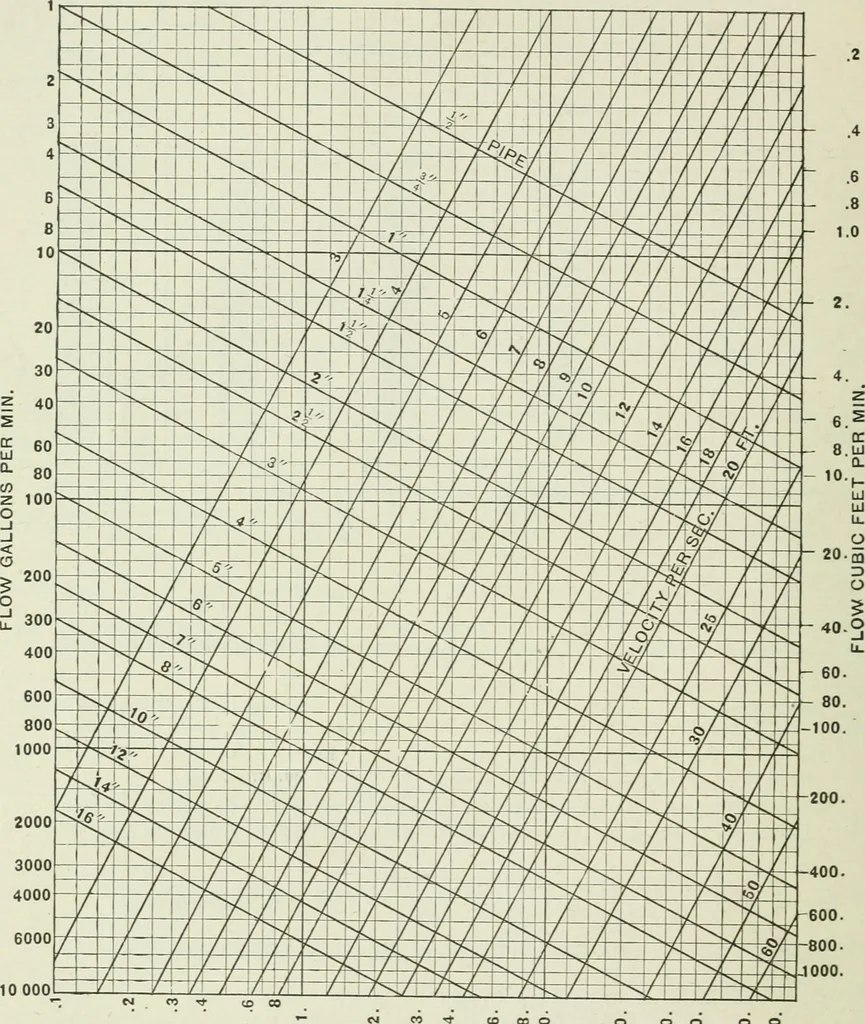

AmericanMachinist, is based on the preceding formula. It gives the velocity of flow in pipes of variousnominal diameters, and also the friction or pressure loss in pounds per sq. in. per 100 ft. of pipe, atvarying rates of flow, stated both in gallons per min., and in cu. ft. per min. The… … 10 000 CO 00 o o o o FRICTION PRESSURE LOSS LBS. PER SQ. IN. PER 100 FT.Fig. 6. Flow of Water ix Pipes. Example. 60 gals, per min. to be tran.smitted 300 ft. through a 2 standard steel pipe. Requiredthe friction loss. From 60 gals, on the left trace horizontally to the intersection with the…
