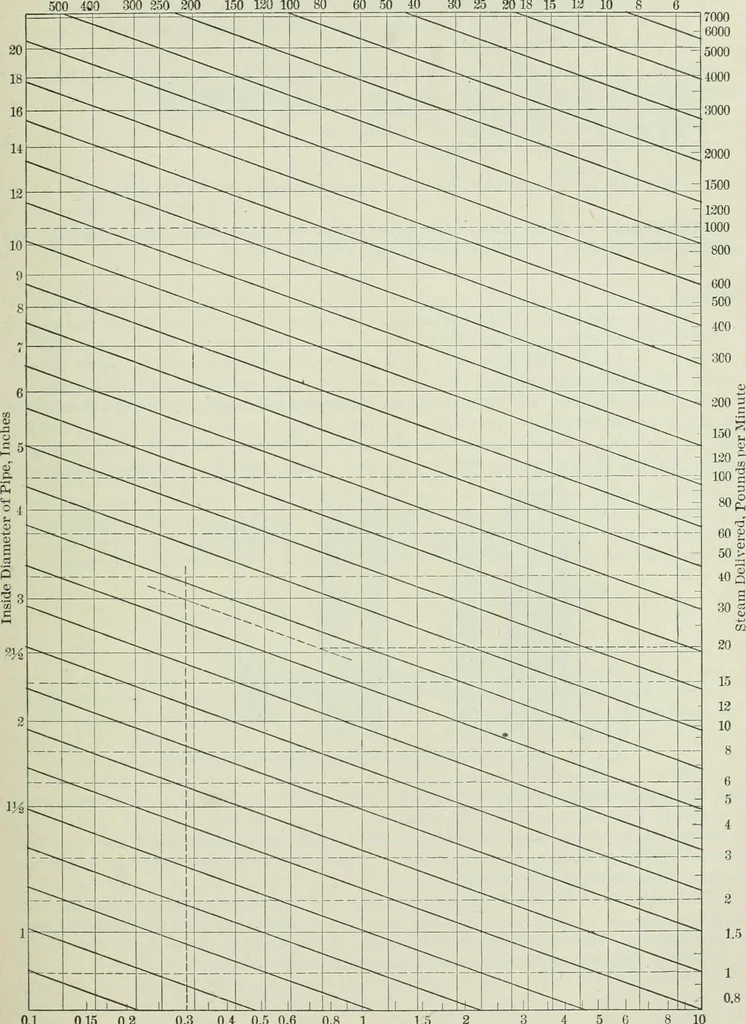

gh an orifice from a higher to a lower pressure where the lower pres-sure is greater than 58 per cent of the higher, the flow per minute may be calculated from theformula: W = 1.9 A K^l {P - d) d Where W = the weight of steam discharged in pounds per minute,A = area of orifice in square inches,P =… … 0.1 0.15 0.2 0.3 0.4 0.5 0.6 0.8 1 1.5 2 3 4 5 Loss of Pressure per 100 Feet of Pipe, Pounds per Square Inch 10 Pig. 18. Chart Showing Loss of Pressure when a Given Amount of Steam Per Minute13 Delivered through a Pipe of Given Size.—H. V. Carpenter. 40 HEATING AND VENTILATION d = the difference in…
