Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 593

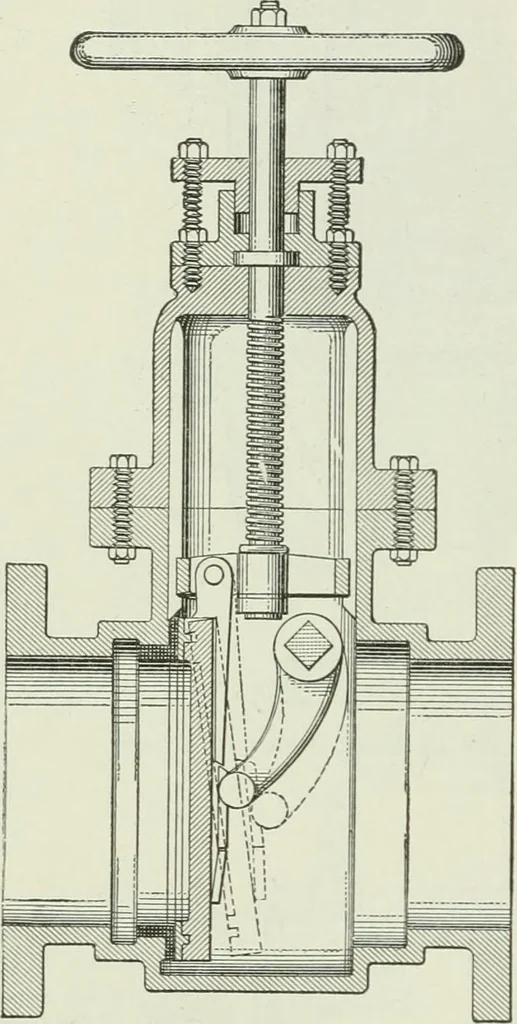

nkenheimer Co., andtypical of this class, illustrates the development of this sort of equipment providing for all con-tingencies and probable replacements, as a consideration of its features will indicate. The jjlugfits snugly in a separate and easily removable bronze casing, which can be readily… … Fig. 26. Interiob of the Erwood Swing-Gate Valve. The Dotted Lines ShowTHE Swing-Gate Partly Open. PIPE, FITTINGS, VALVES, COVERINGS AND ACCESSORIES 567 Ordinary plug cocks (Fig. 28) on blow-off lines are satisfactory for low pressure heating work,and specially designed cocks or asbestos-packed…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
