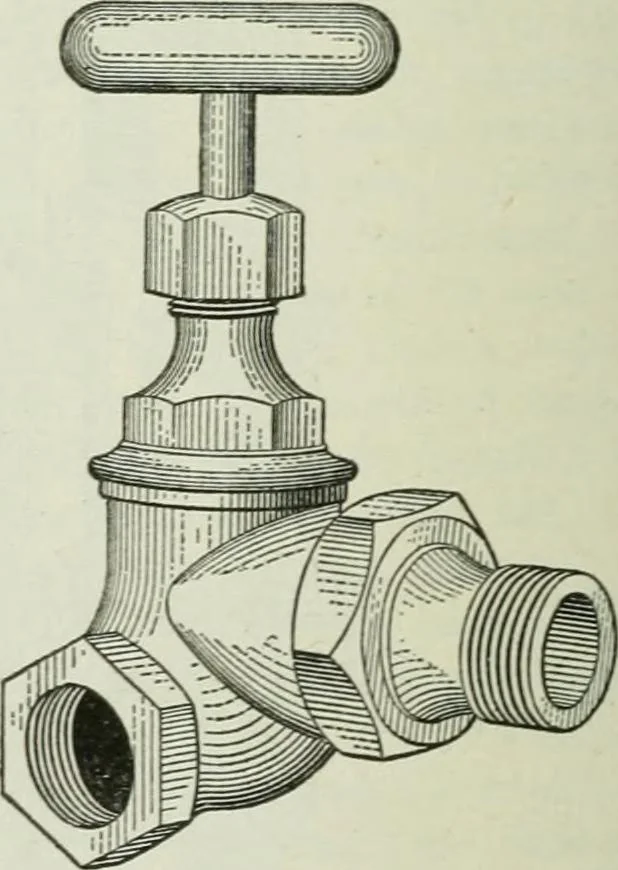

Fig. 29. Ste.\m Radiator Valve—Angle Pattern {Jenkins Bros.). Description of Parts. 6. Disc 11. Union Nut 7. Waste Nut 12. Union Nipple 8. Wheel Nut 13. Bottom Plate 9. Disc Nut 14. Wood Wheel 1. Wheel 2. Lock Nut 3. Spindle 4. Bonnet 5. Disc Holder … 10. Body 15. Top Plate Fig. 30. Offset Corner ValveAviTH Male UNnoN, Right Hand. butterfly type of valve shown above. The valve shown has a conical shell and globe-shapedbody, which helps materially to do away with the sticking of the shell, since only a small *NoTE.—When these valves are used on…
