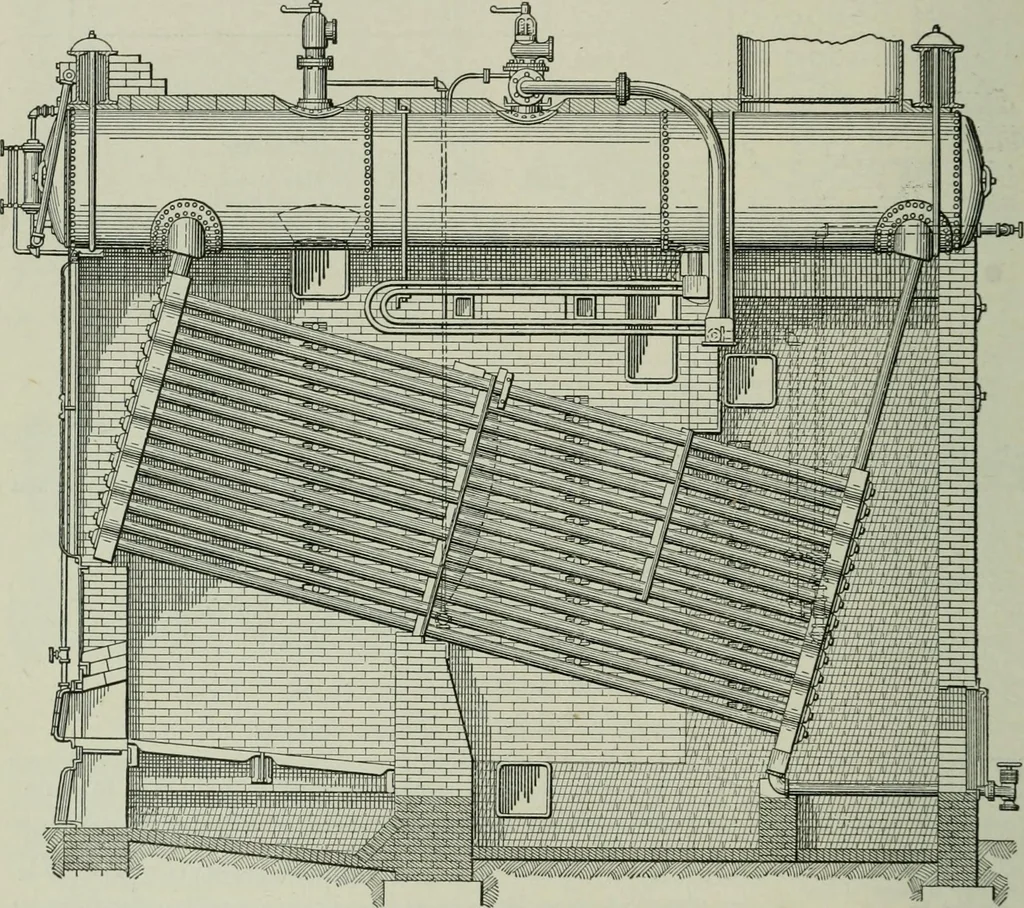

. per sq. inch. Thepressed-steel head is equipped with circular outside handhole fittings. Boilers of the longitudinaldrum type are suspended front and rear from wTOUght-steel supporting frames carried by crosschannels attached to steel columns. This allows for contraction and expansion of the… … i Fig. 22. Wkought-Steel, Inclined Header, Longitudinal Drum Babcock & Wilcox Boiler,Equipped with Babcock & Wilcox Superhe.\ter. headers is made up of a forged steel box 7K n. square and of such a length as to be con-nected to all of the headers by means of short nipples. The mud drum is…
