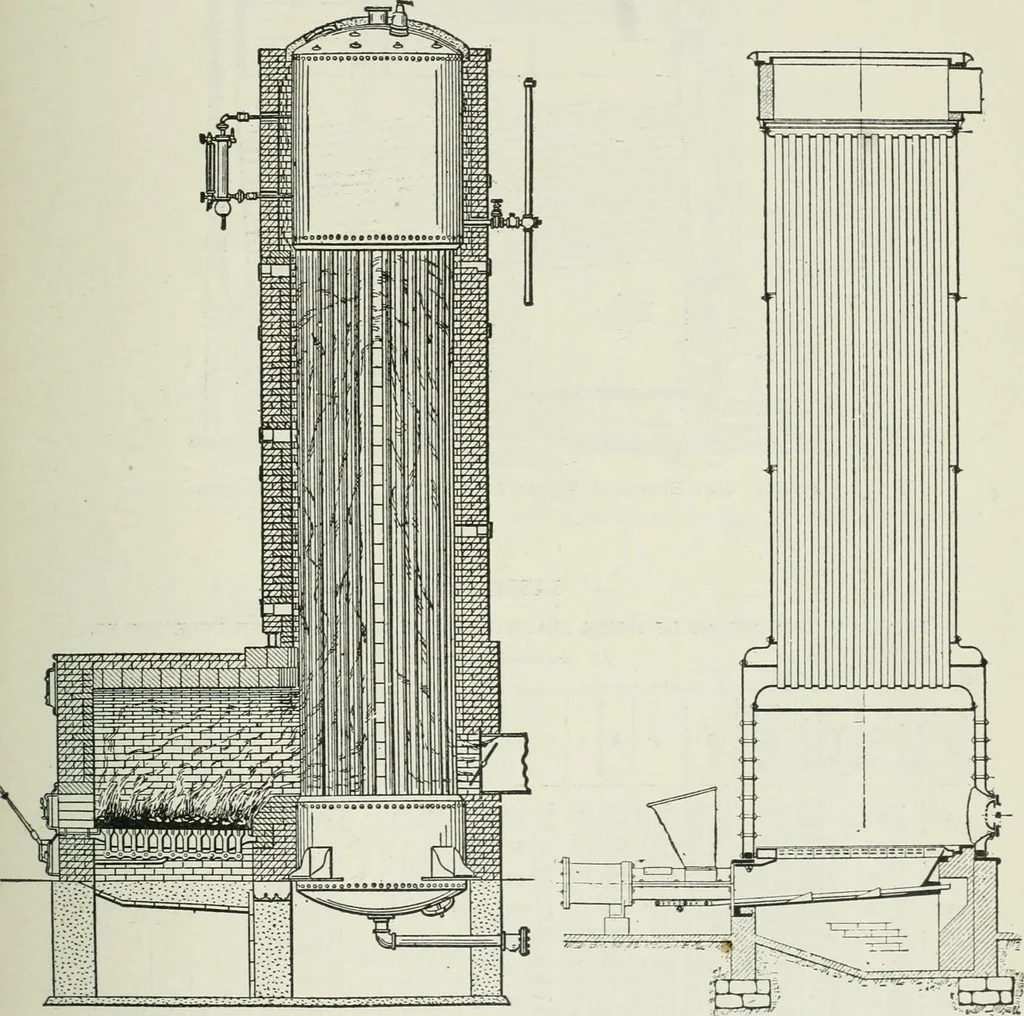

Fig. 26. Stirling Water-Tube Boiler with Superheater ix Middle Pass. blow-off cock or valve. The circulation is down through the rear header, thence throughthe tubes to the front header and into the steam drum. A baffle is provided over thefront header in the steam drum as shown to prevent an… … Fig. 27. Section of a Cahall Vertical Water-Tube Boiler. Fig. 28. Manning Vertical Fire-Tube Boiler. 116 POWER PLANTS AND REFRIGERATION
